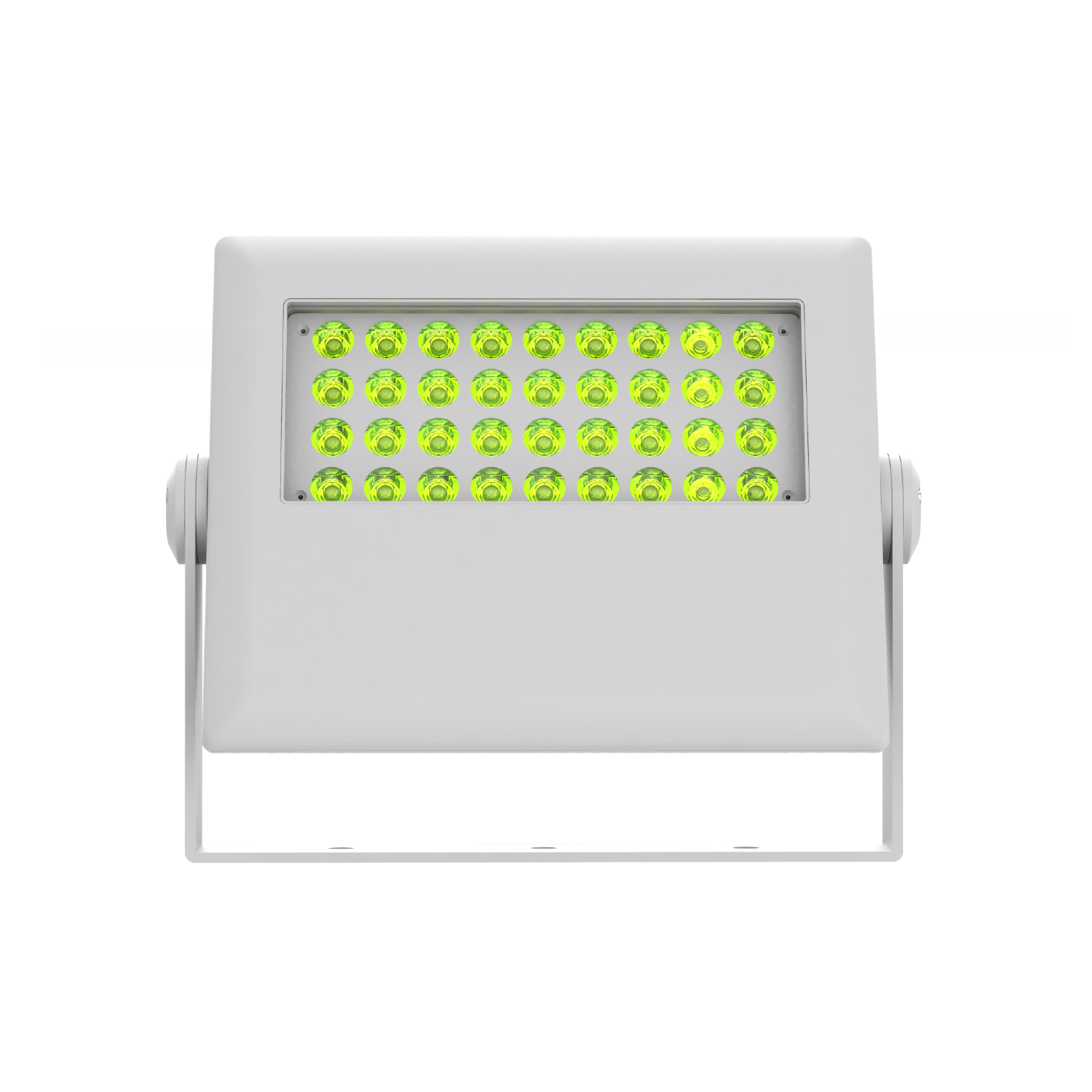

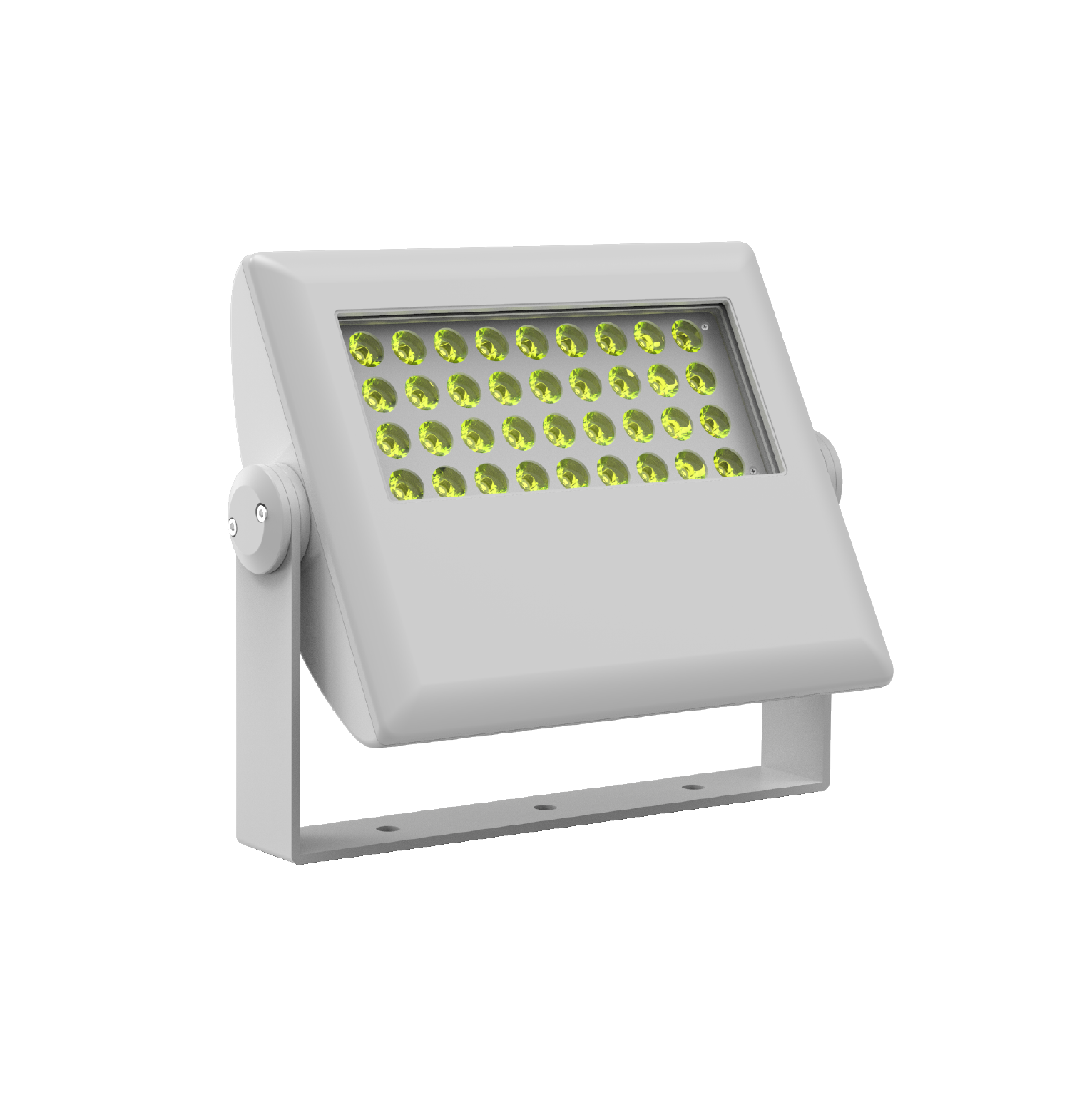

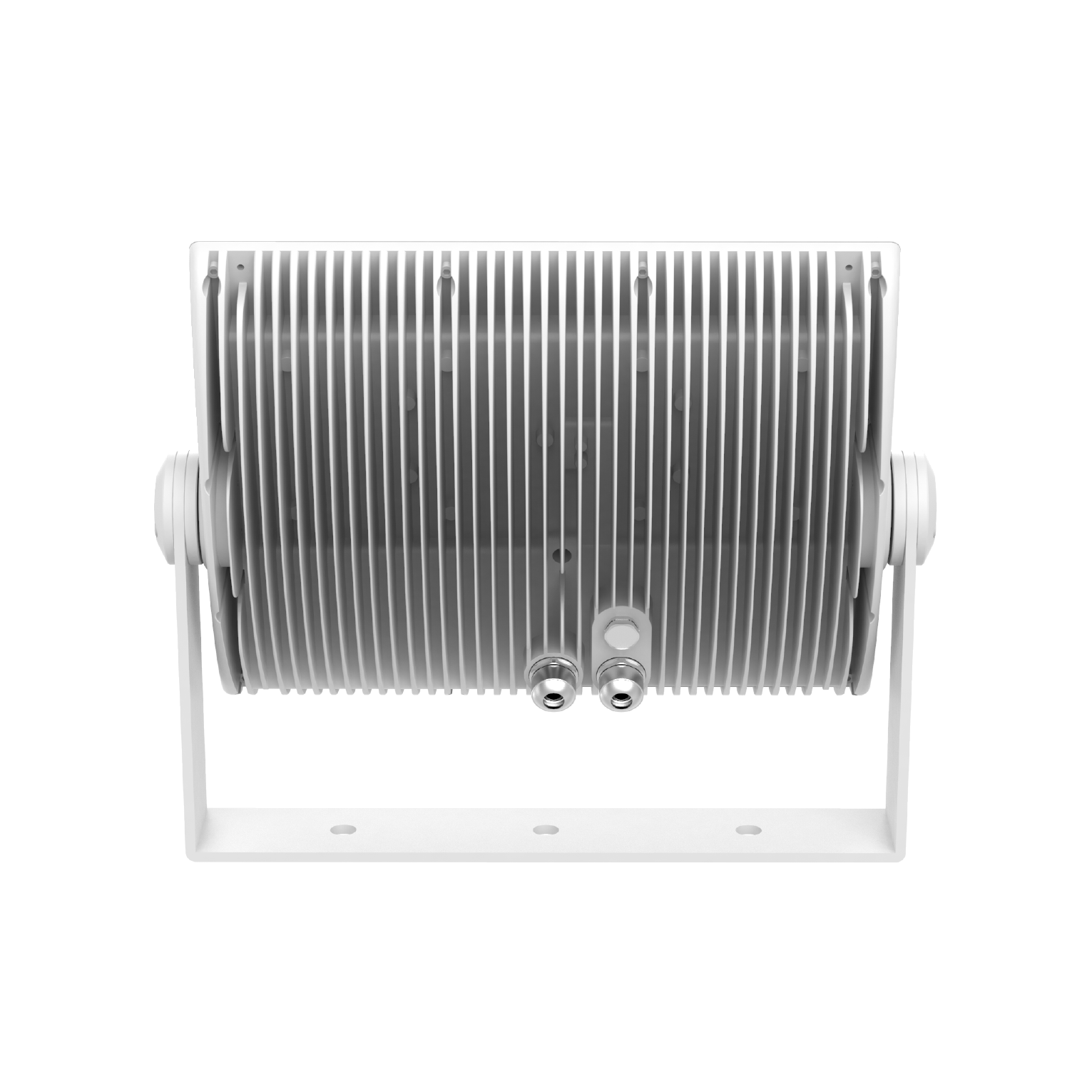

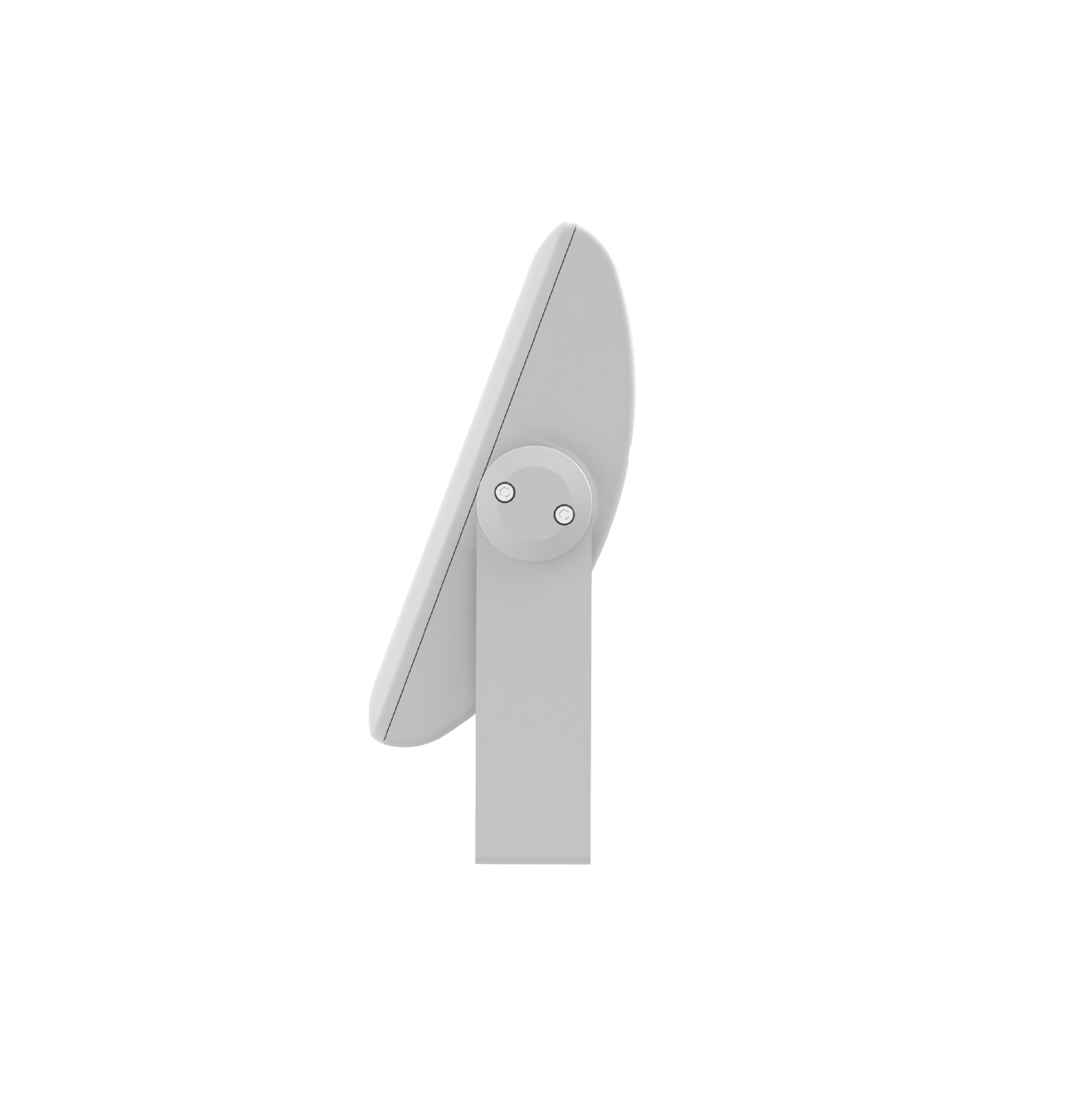

Real Photo

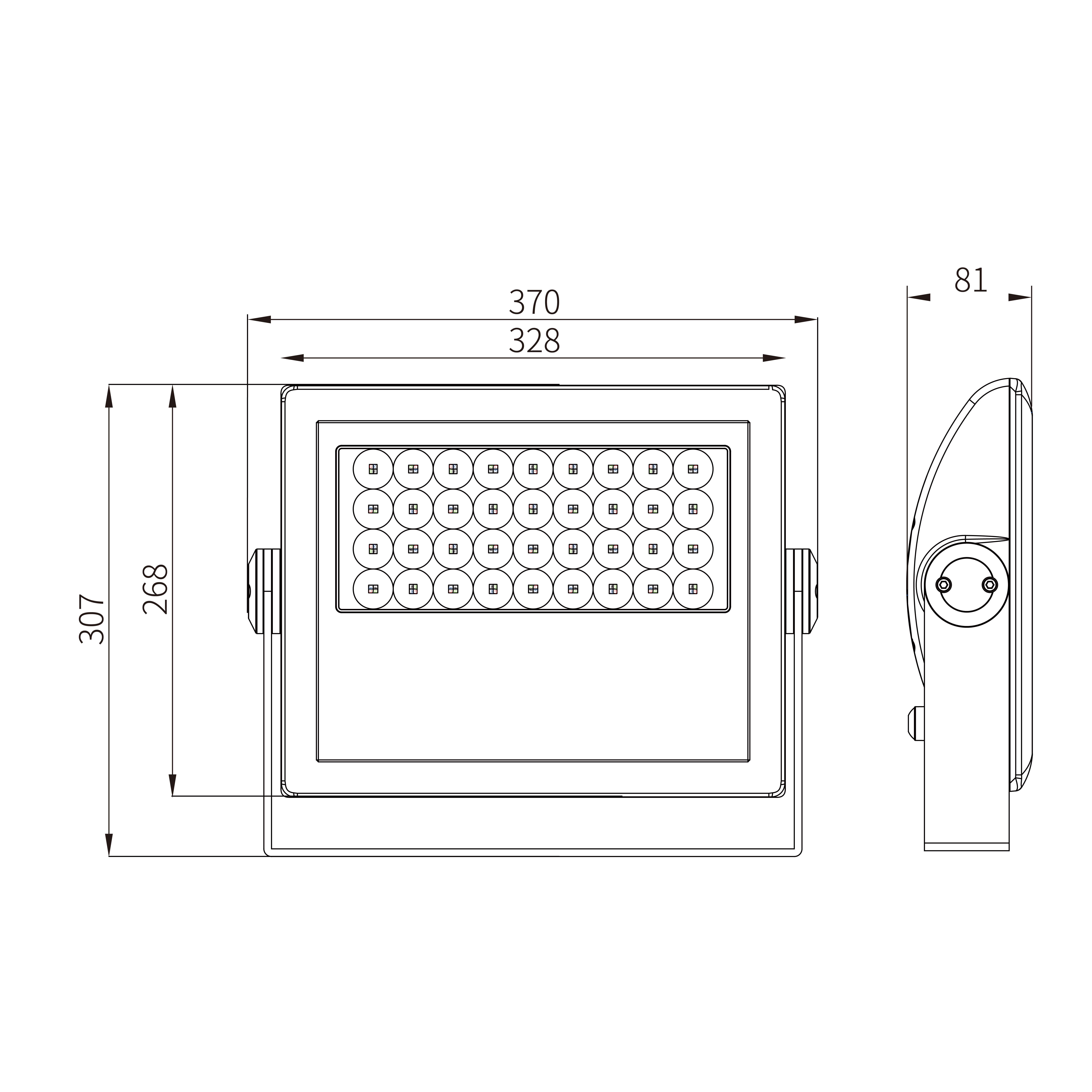

Dimension Drawing

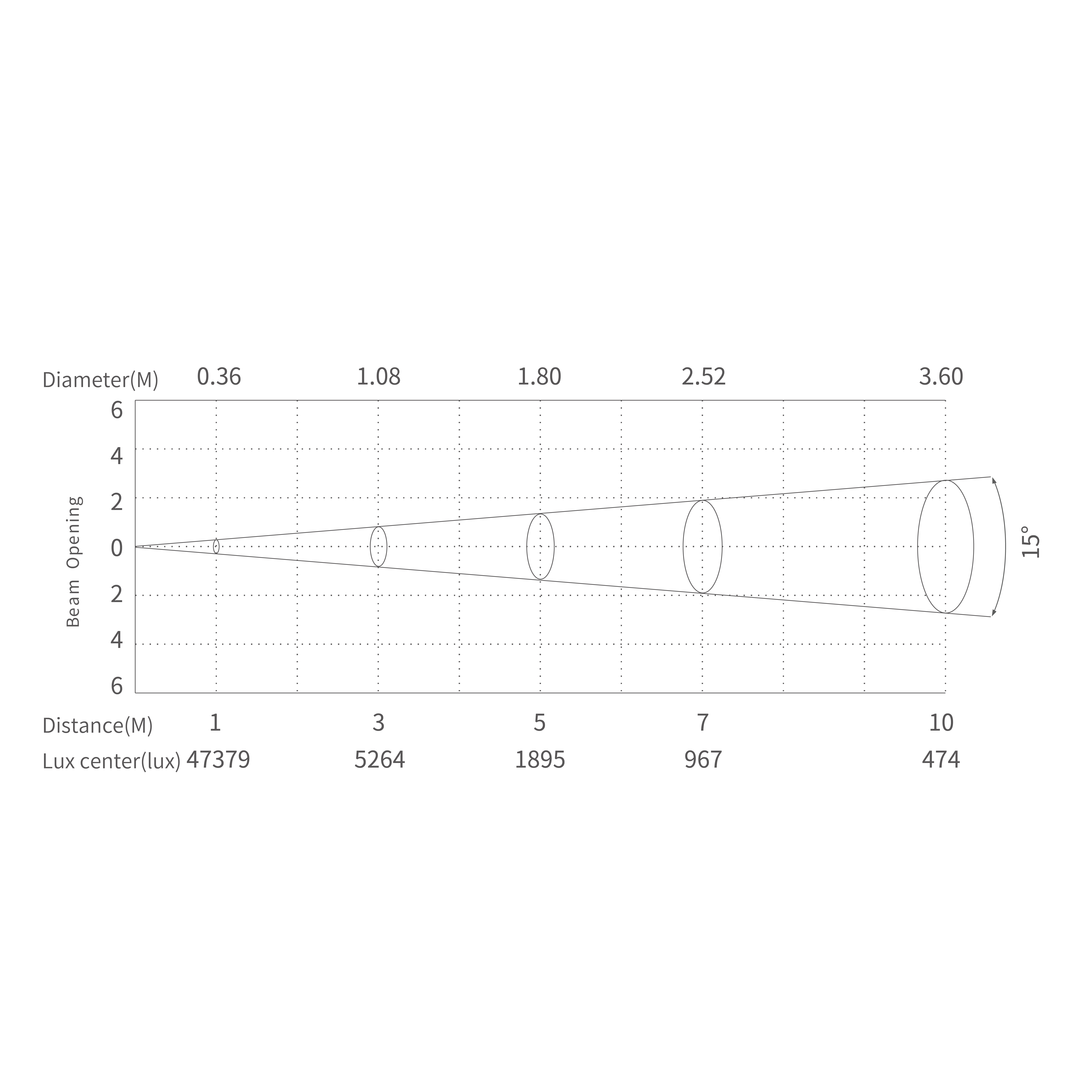

Illuminance Diagram
Squre floodlights
KOLORMAX KF2, use of lightweight aviation aluminum, energy saving design, the weight ofthe whole fixture only7.6kg, green lighting energyconsumotion ratio ot l4sblm ke, hiph-eticlency bower 4-in-, kobliED chib. with a new heat dissibaton distubuton structure. to ensurethat LED in high-intensity operation stable and reliable, durable. Unigue high-end optical design, easily get an accurate mixed single color ormulti-color, and the light efficiency up to 86lm'w, leading the new concept of lighting energy saving. lt has a variety of lens angles optionssuitable for landscape, building, pedestrian street and other scenes. KOLORMAX KF2, showing extraordinary light efficiency, the ideal choicefor architectural floodlight.
/upload/images/product/20251009/17599883125981441.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251009/17599883124717902.png
Luminous Flux
12994lm
/upload/images/product/20251009/17599883128298064.png
Angle
10° 15° 30° 45° 60° 15°*30° 15°*60°
/upload/images/product/20251009/17599883123932984.png
CRI
Ra:85
/upload/images/product/20251009/17599883121988710.png
weight
7.6kg
/upload/images/product/20251009/17599883123631374.png
Power
200W
TECHNICAL PARAMETER
Product code

AM724KXLET

Max.Power

200W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux

12994lm

Peak Intensity47398cd(15°)
CRI
Ra:85
CTO
1800K-10000K
Built-in colors24 preset colors
Con PersonalityDMX512 RDM
Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)307*370*82mm
weight7.6kg
