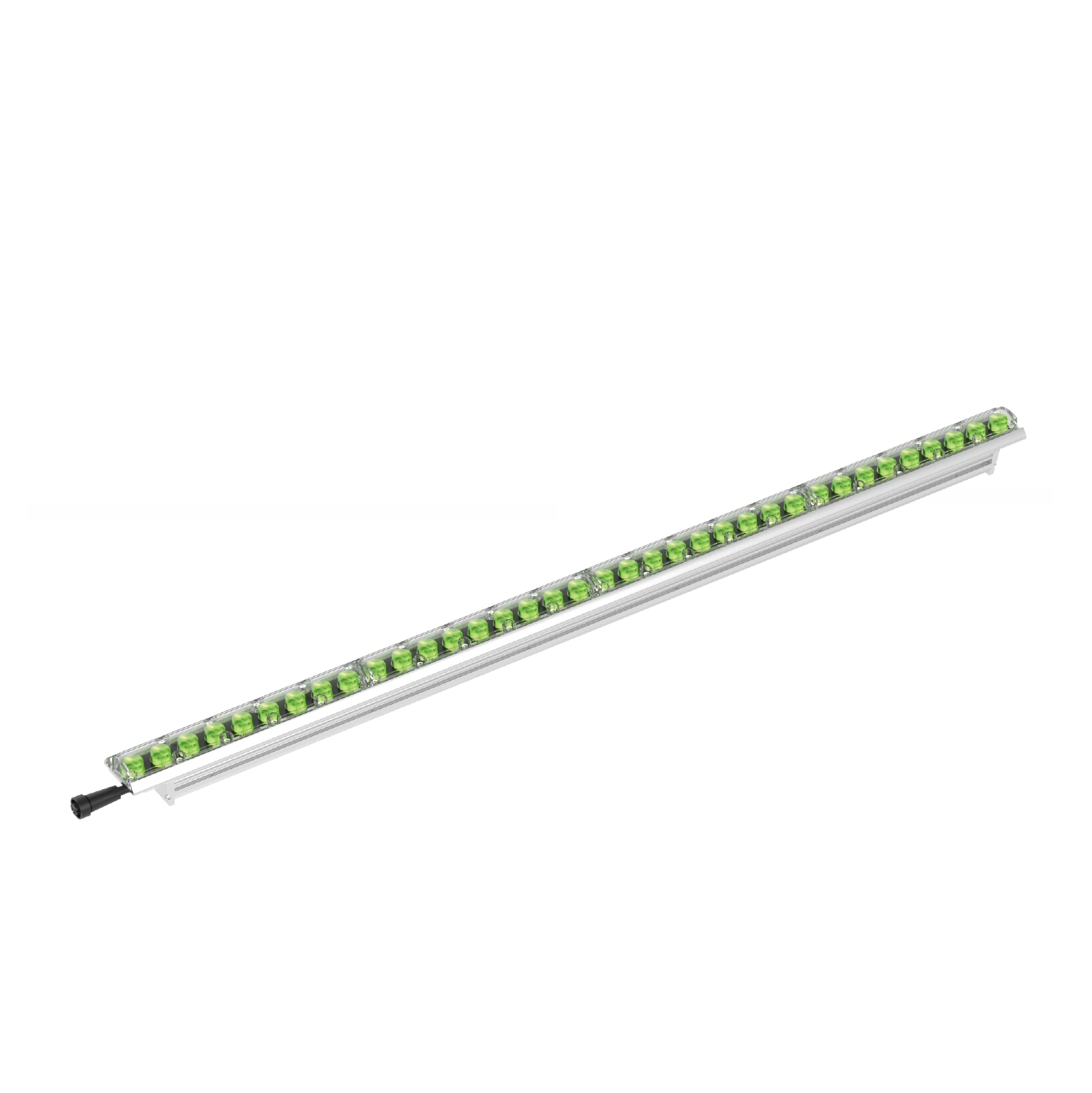

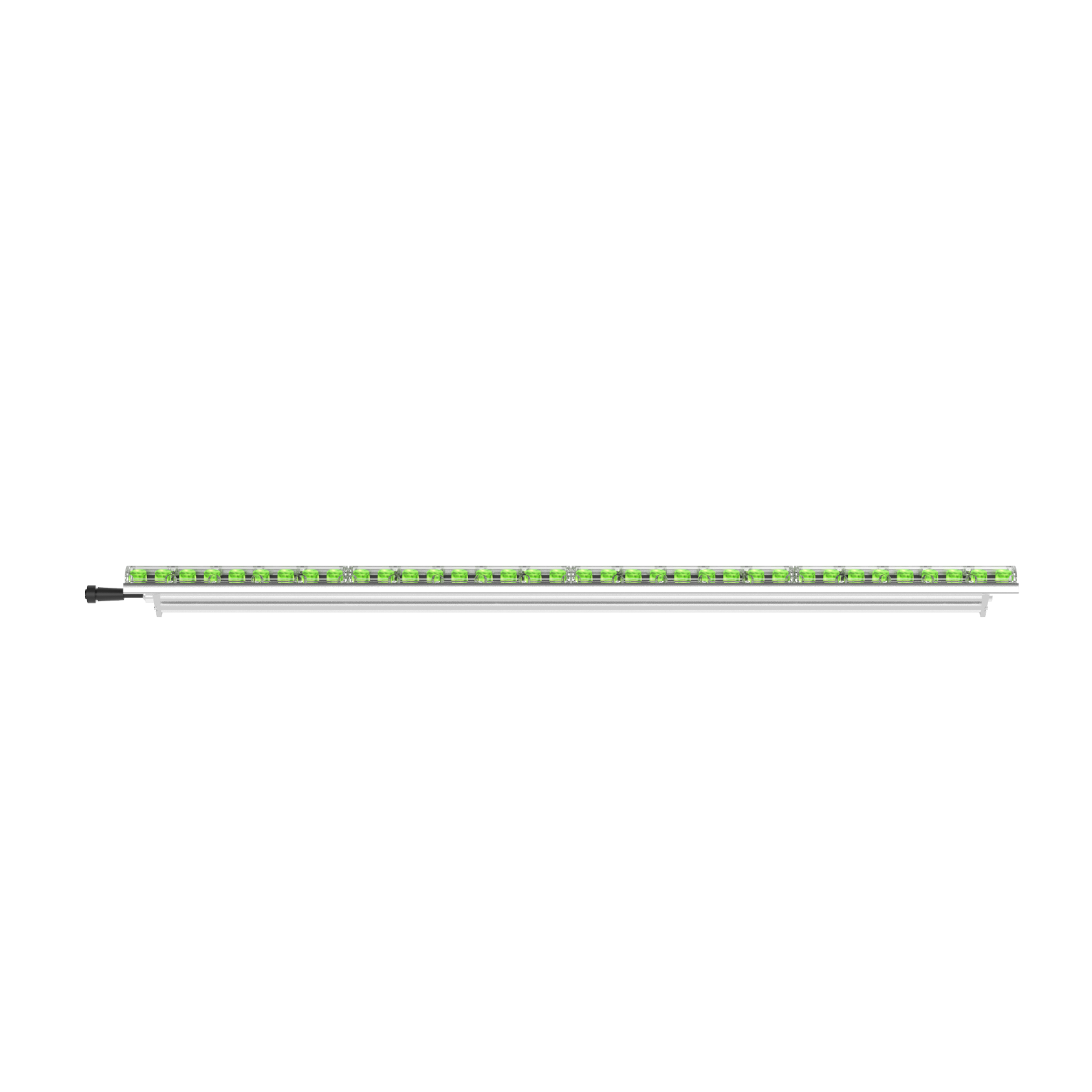

Real Photo

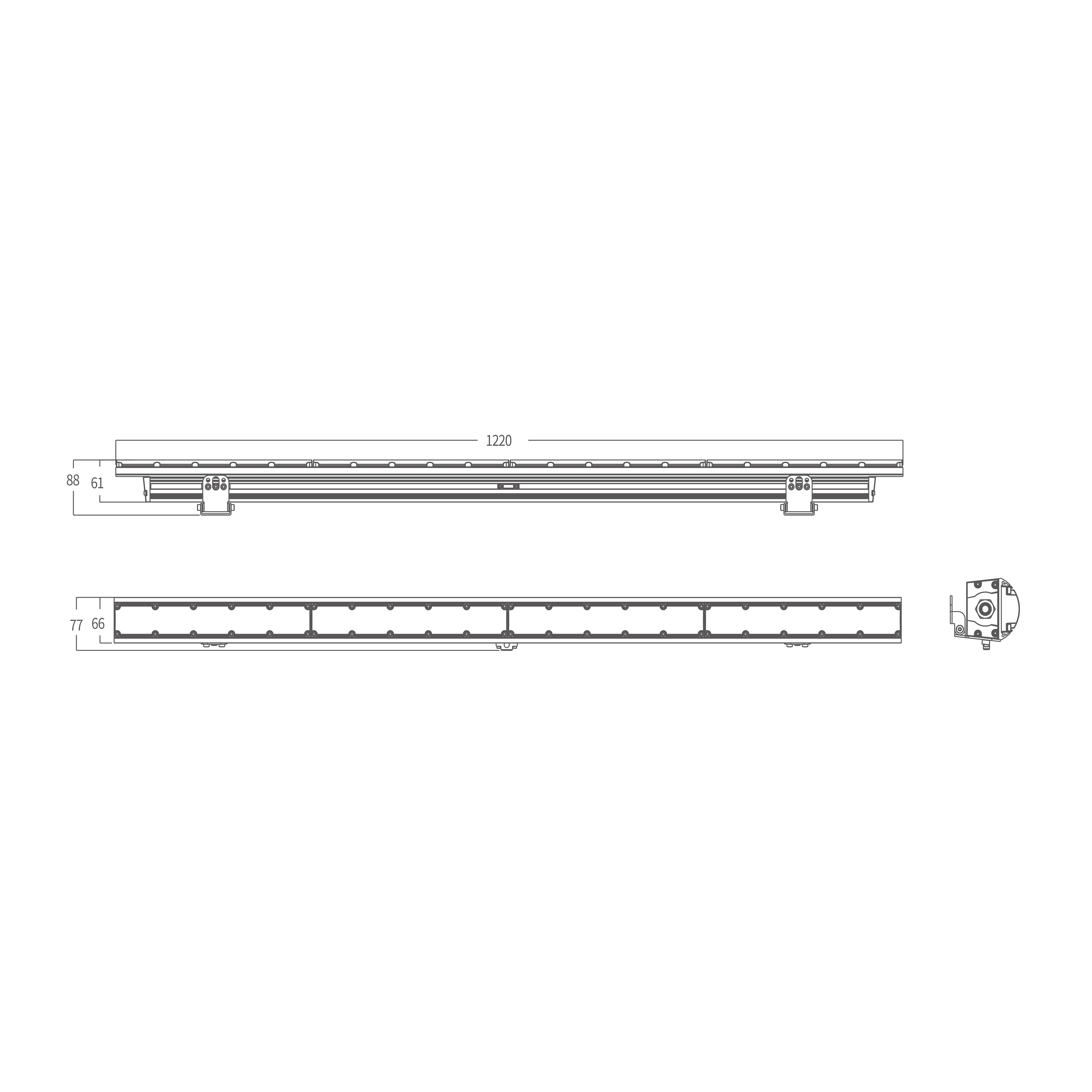

Dimension Drawing

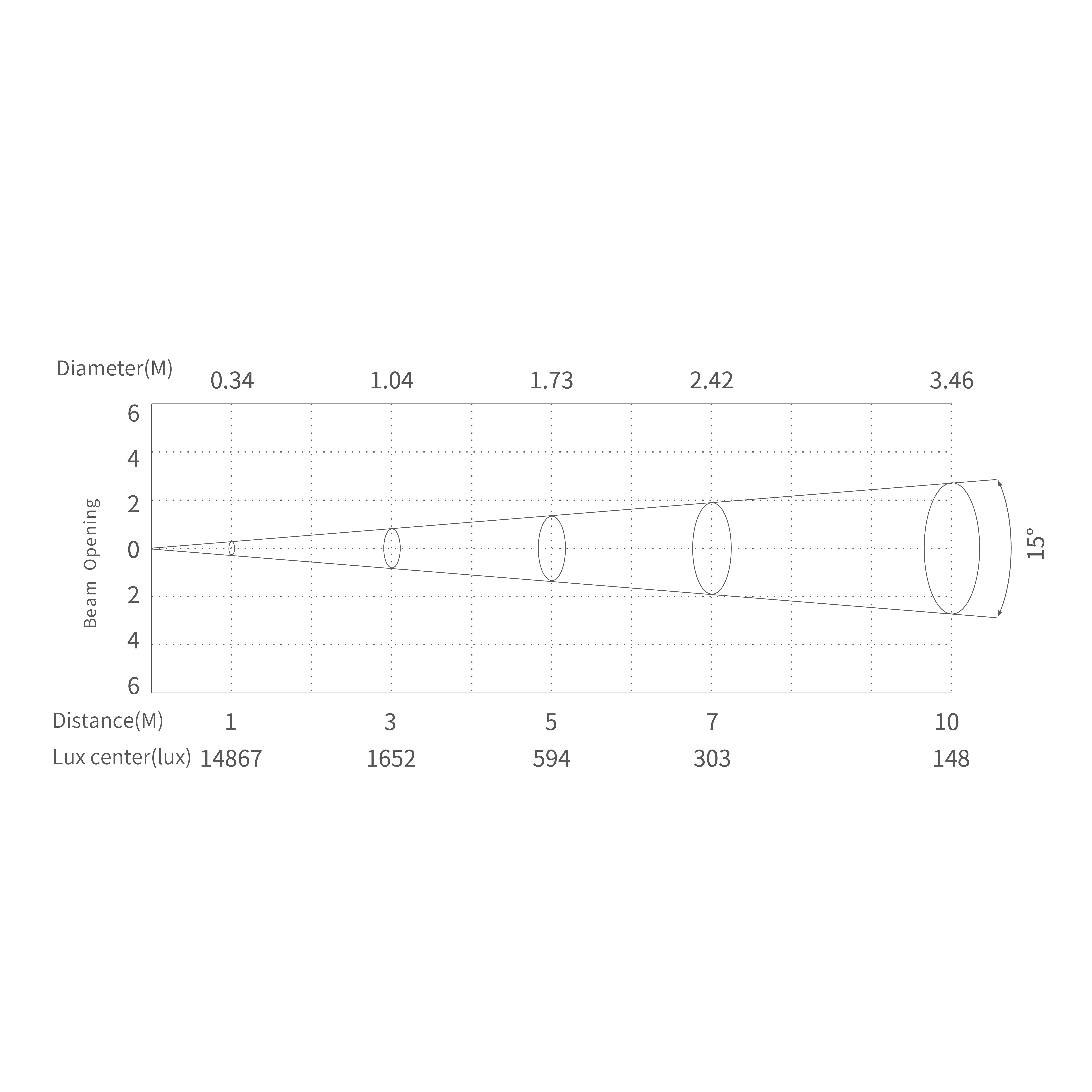

Illuminance Diagram
Linear graze
KOLORMAX Kl4 the selection of ightweight. ow-carbon environmental protection desien, the weight of the whole fixture is only 4.2kegreen lighting energy consumption ratio of1964lm/kg,innovative high-power 4-in-1 RGBL LED chip, integration ofunigue high-end opticadesign, easily get an accurate mixed single color or multi-color, and the light eficiency up to 81lm/w, leading the new concept of lightingenergy saving, Seamless connection design, RoM, DMX512 and segment control, can achieve color gradual change, jump, chase and otheleffects, the Kl4 suitable for large building lighting projects, like commercial building, elevated overpasses, building external wals.landmarks and other facade wash. KOLORMAX KL4 makes every space lighting with charm.
/upload/images/product/20251009/17599777607881264.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251009/17599777608729483.png
Luminous Flux
9824lm
/upload/images/product/20251009/17599777605844494.png
Angle
10° 15° 30° 45° 60° 15°*30° 15°*60°
/upload/images/product/20251009/17599777603363224.png
CRI
Ra:85
/upload/images/product/20251009/17599777608090173.png
weight
4.2kg
/upload/images/product/20251009/17599777602582020.png
Power
120W
TECHNICAL PARAMETER
Product code

AM714KXLET

Max.Power

120W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux

9824lm

Peak Intensity16794cd(15°)
CRI
Ra:85
CTO
1800K-10000K
Built-in colors24 preset colors
Con PersonalityDMX512 RDM
Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)1220*66*61mm
weight4.2kg


Document Download

Product brochure
Product lamp library
CAD
User manual
