钟楼1
Product Center
KL1_画板 1
KL1_画板 2
KL1_画板 5
KL1_画板 7

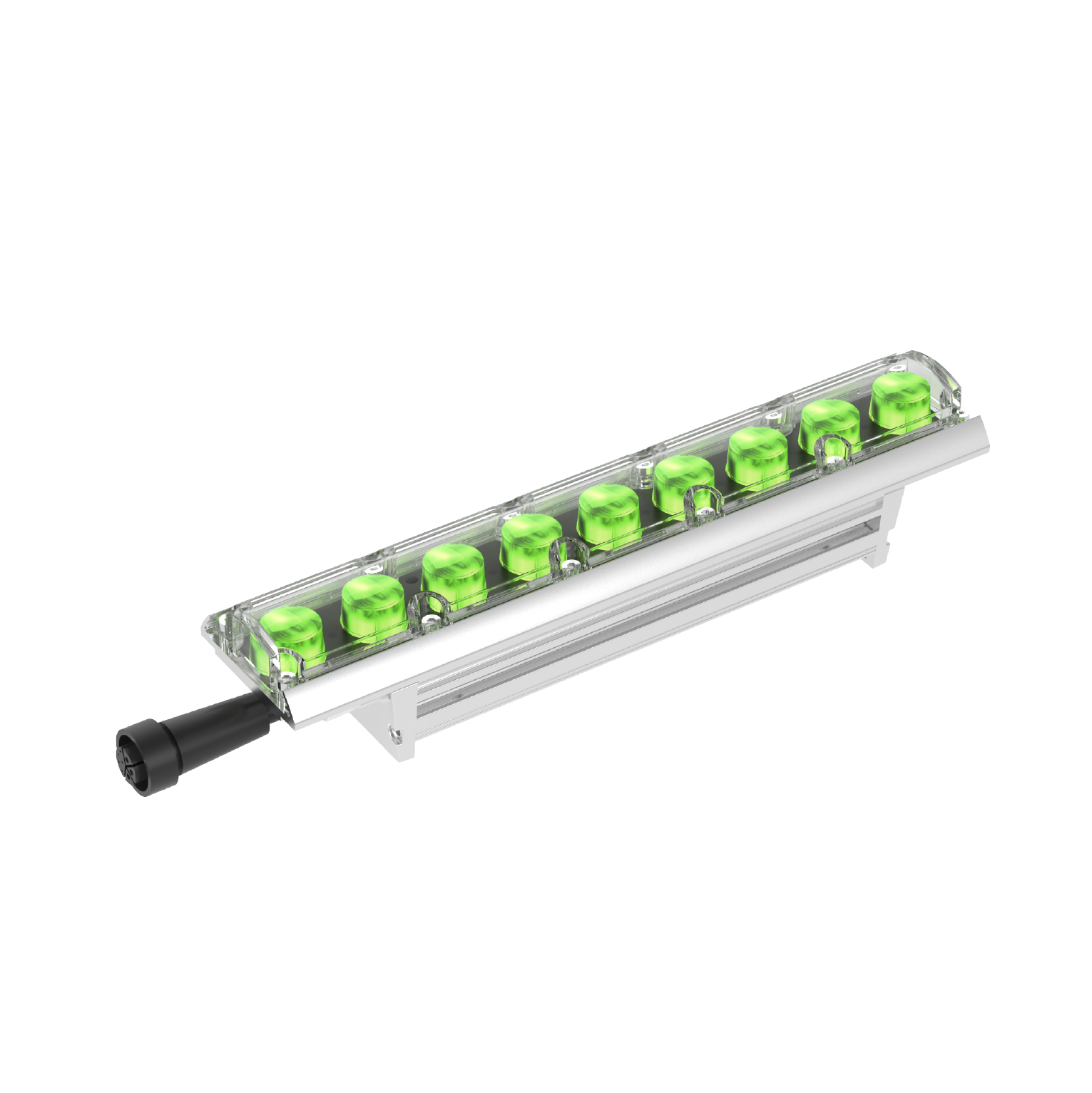

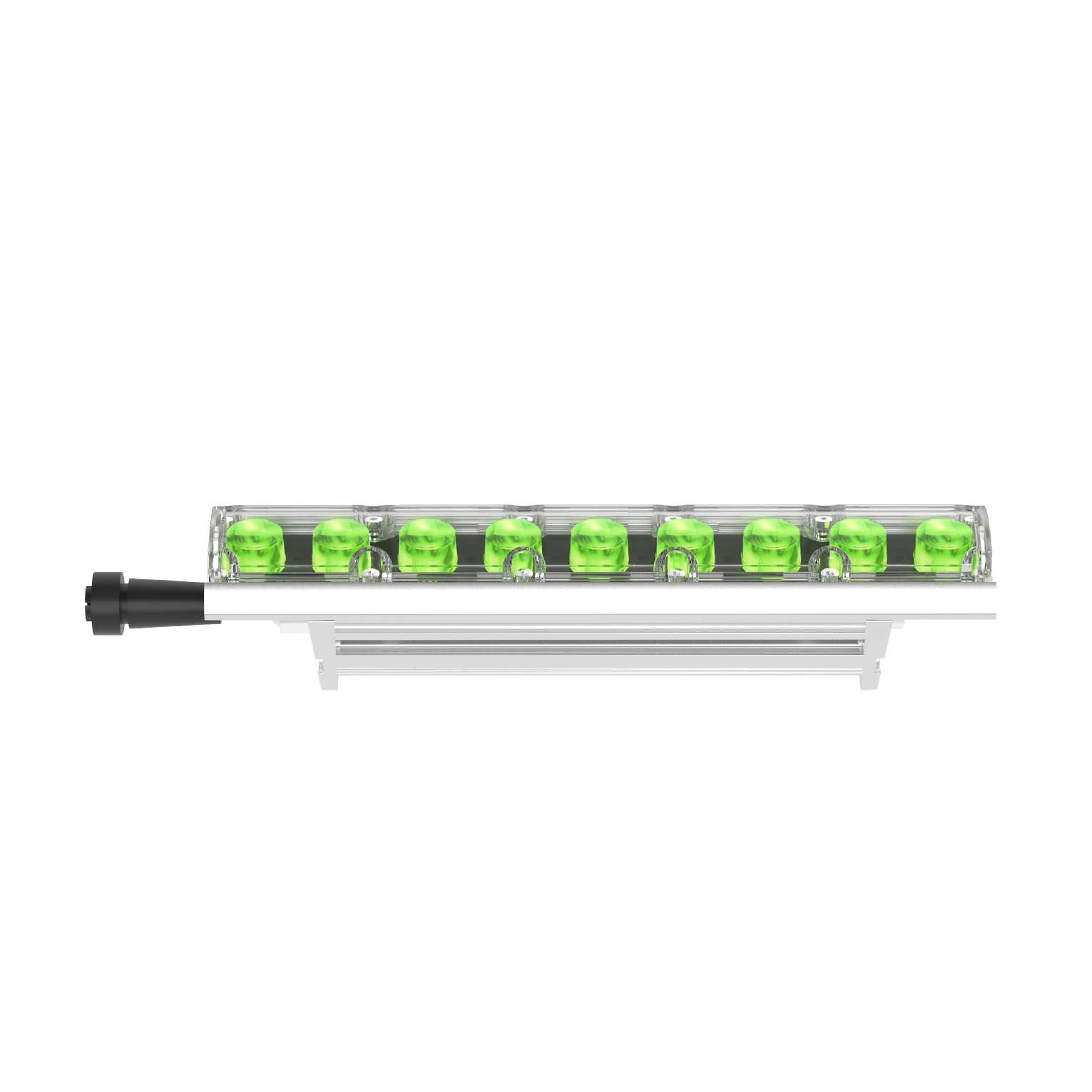

Real Photo

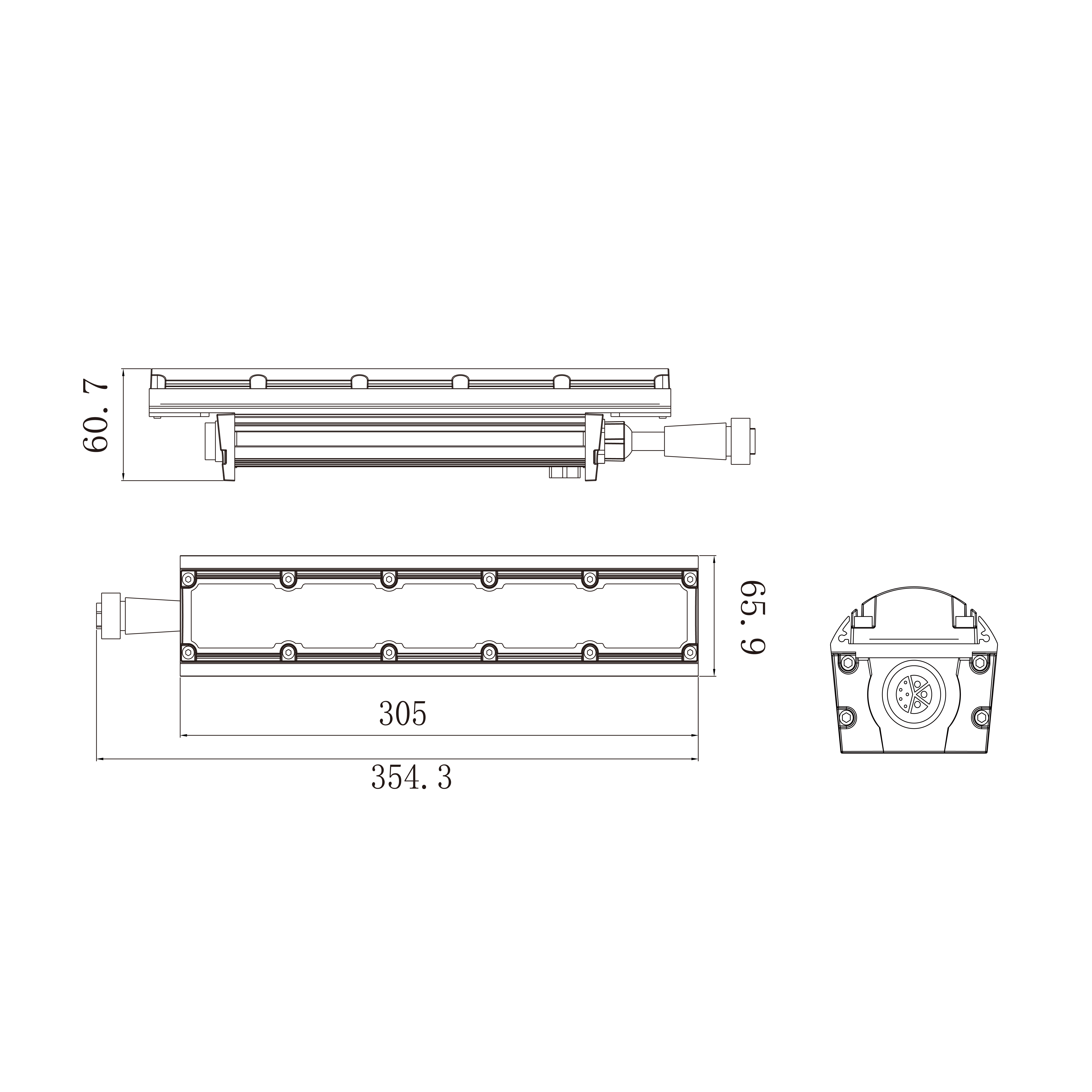

Dimension Drawing

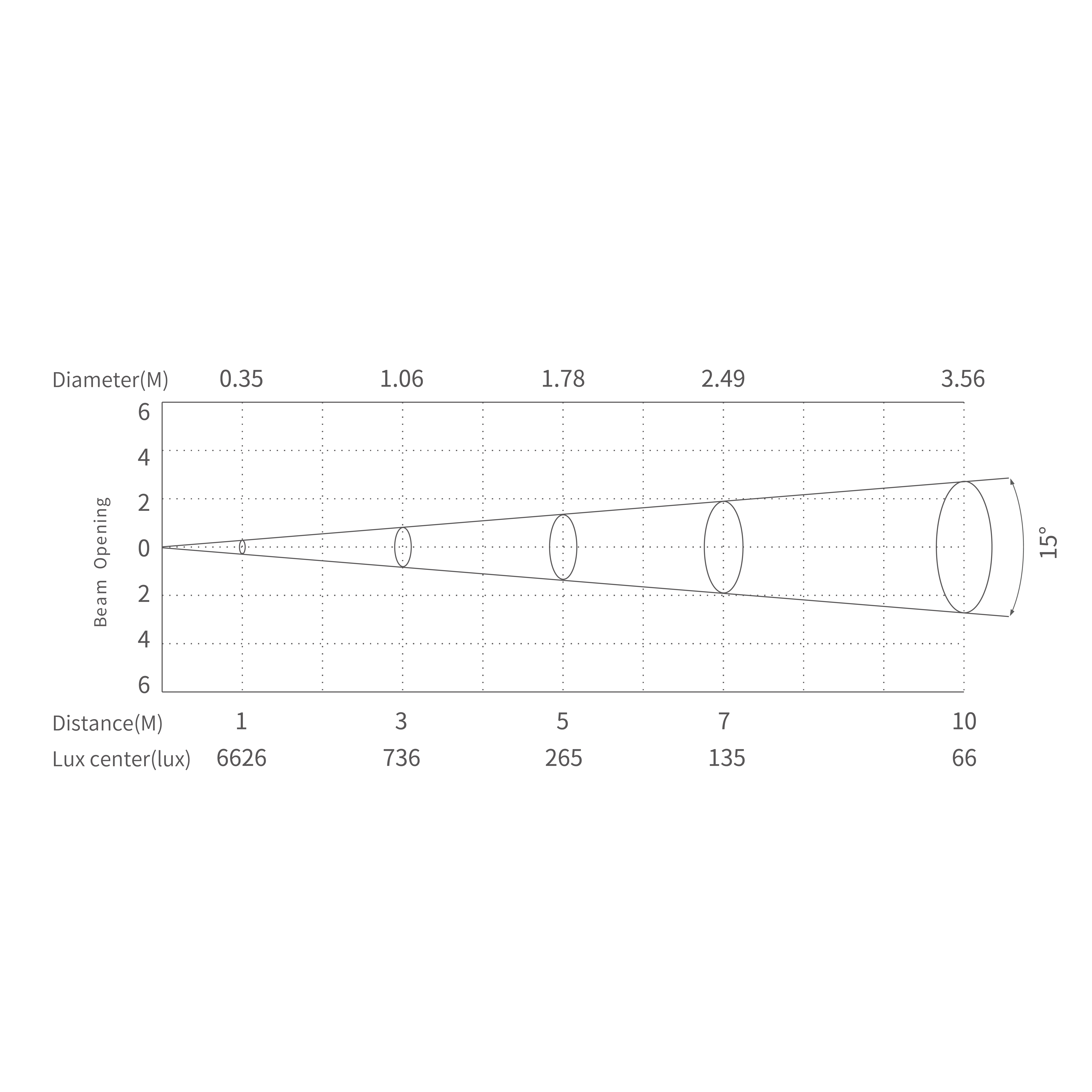

Illuminance Diagram
Linear graze
KOLORMAX KL1, the selection of lightweight, low-carbon environmental protection design, the weight of the whole fixture is only 1.2kg.green lighting energy consumption ratio of 1433lm/kg, innovative high-power 4-in-1 RGBL LED chip, integration ofunigue high-end opticadesign, easily get an accurate mixed single color or multi-color, and the light eficiency up to 71lm/w, leading the new concept of lightingenergy saving. Seamless connection design, RDM, and DMX512 control, can achieve color gradual change, jump, chase and other efectsthe KL1 suitable for large building lighting projects, like commercial building, elevated overpasses, building external walls, landmarks andother facade wash.KOLORMAX KL1 makes every space lighting with charm.
/upload/images/product/20251009/17599815879751371.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251009/17599815876865019.png
Luminous Flux
2150lm
/upload/images/product/20251009/17599815874683518.png
Angle
10° 15° 30° 45° 60° 15°*30° 15°*60°
/upload/images/product/20251009/17599815876246743.png
CRI
Ra:85
/upload/images/product/20251009/17599815879037669.png
weight
1.2kg
/upload/images/product/20251009/17599815875687256.png
Power
30W
TECHNICAL PARAMETER
Product code

AM711KXLET

Max.Power

30W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux

2150lm

Peak Intensity7121cd(15°)
CRI
Ra:85
CTO
1800K-10000K
Built-in colors24 preset colors
Con PersonalityDMX512 RDM
Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)305*66*61mm
weight1.2kg


Document Download

Product brochure
Product lamp library
CAD
User manual
