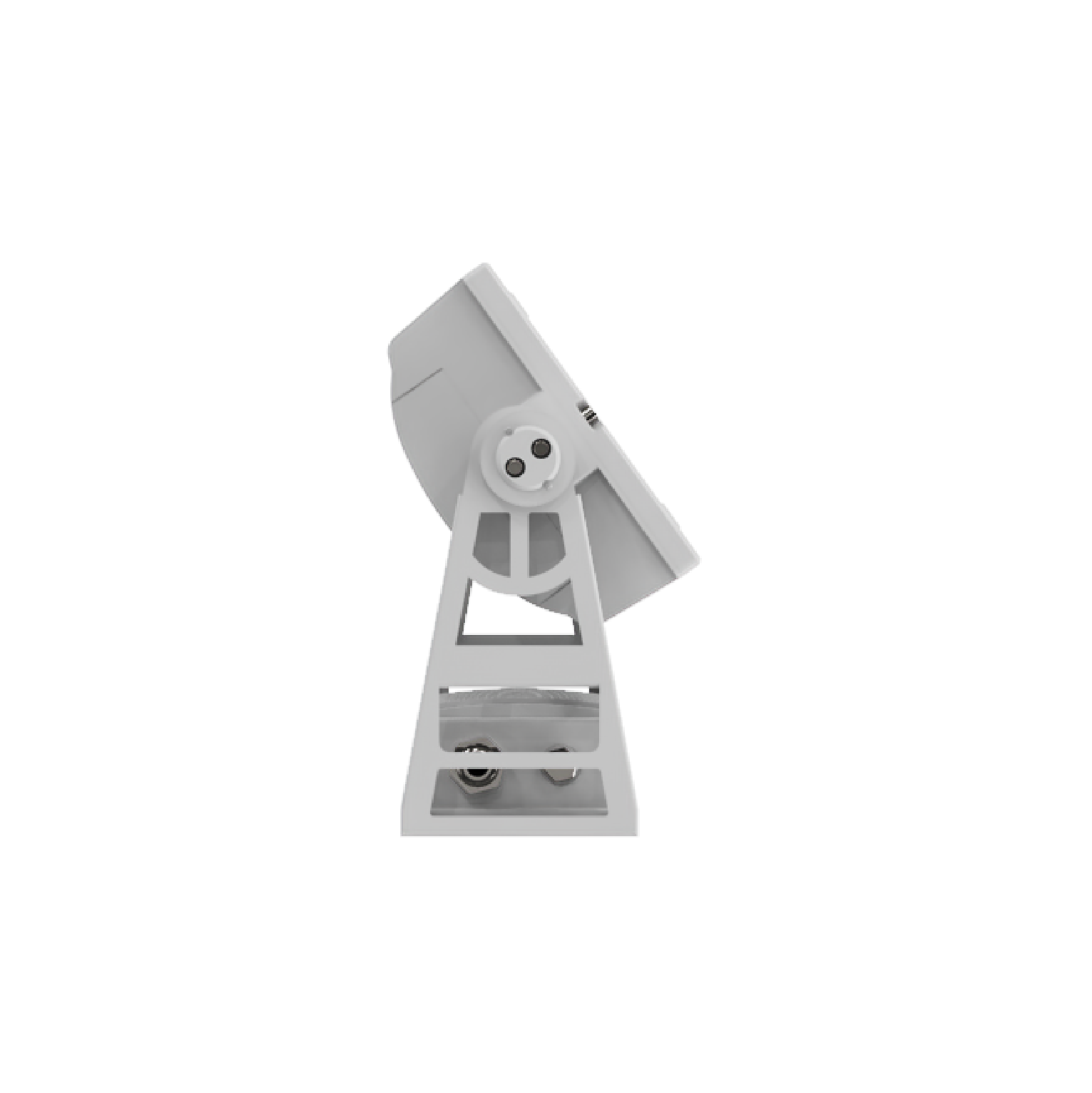

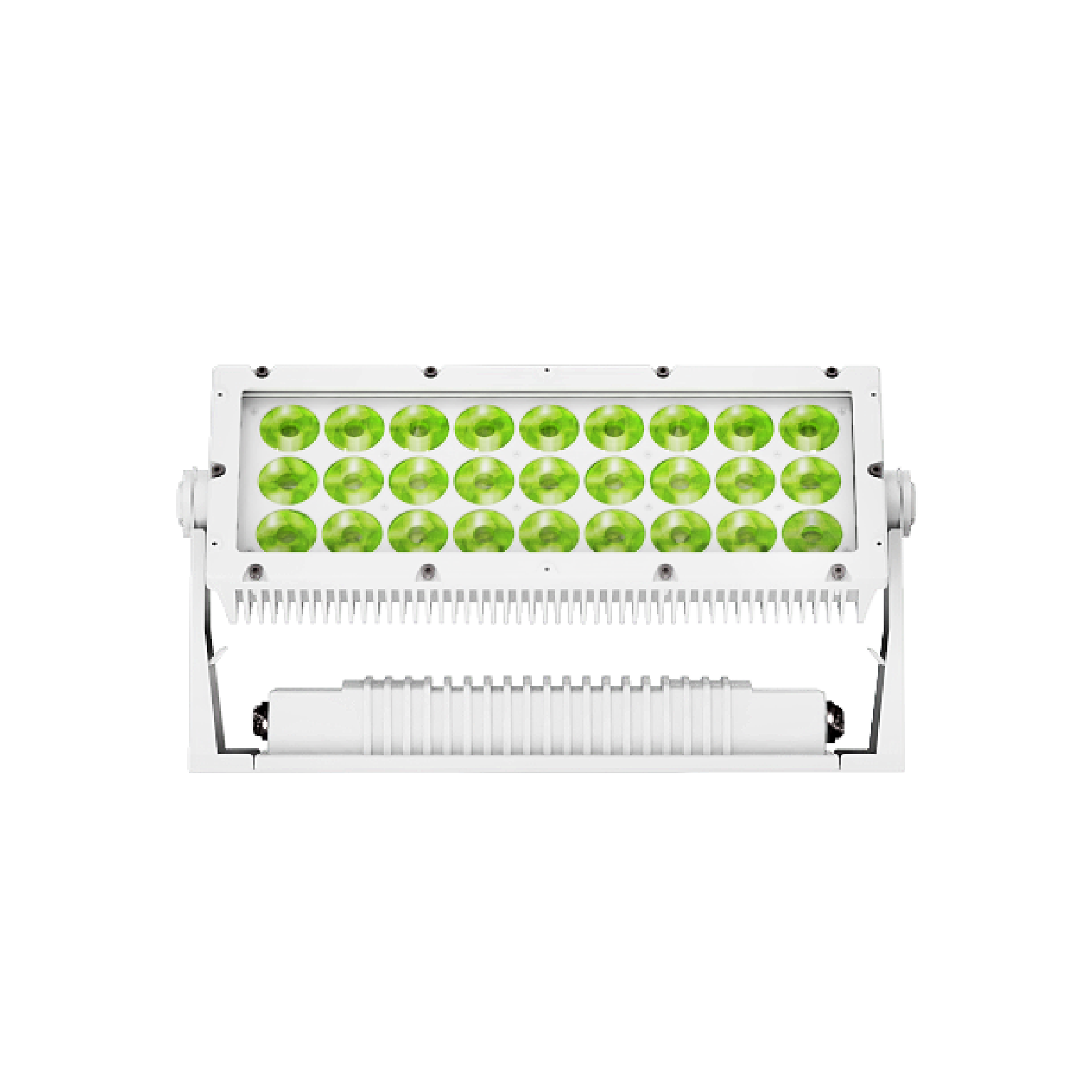

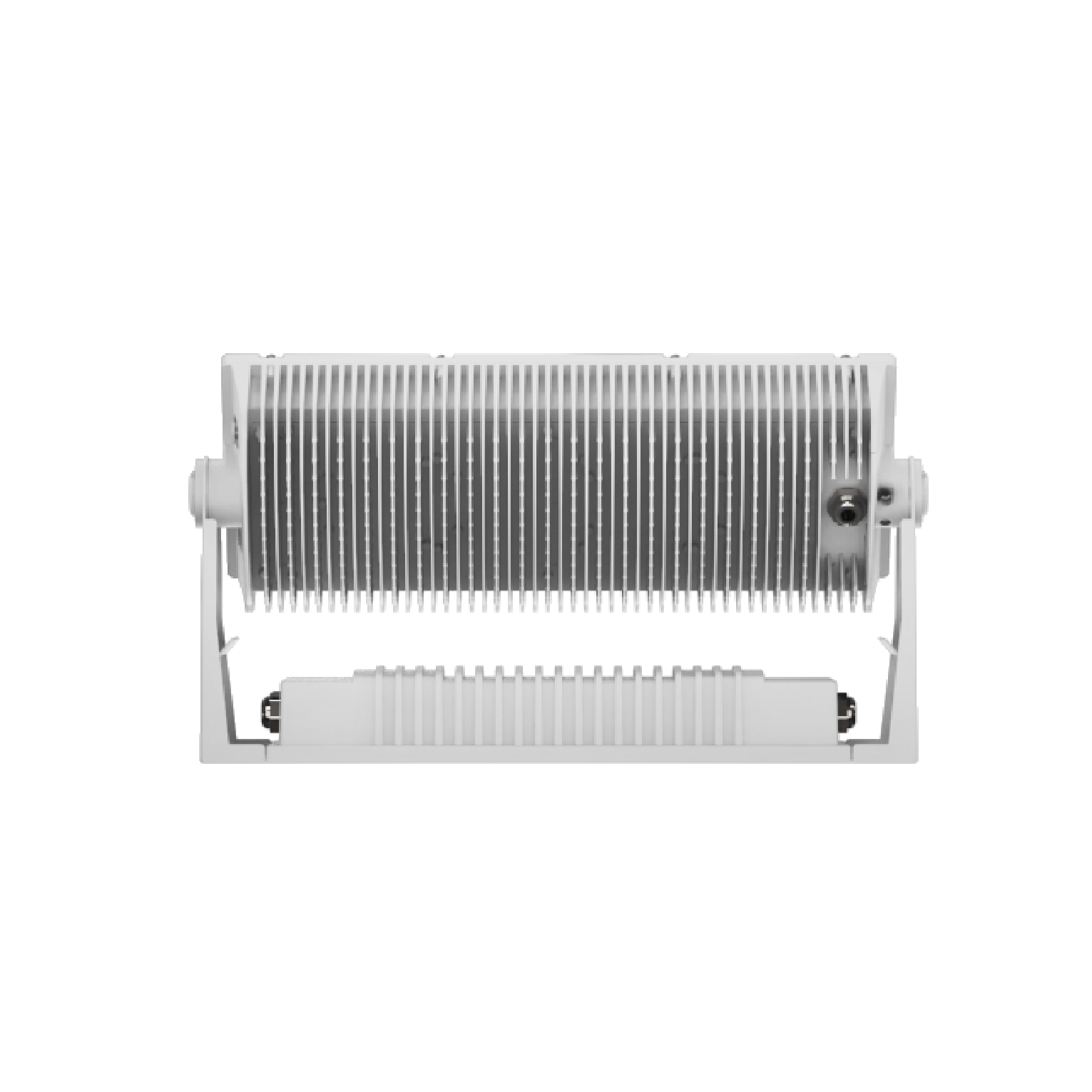

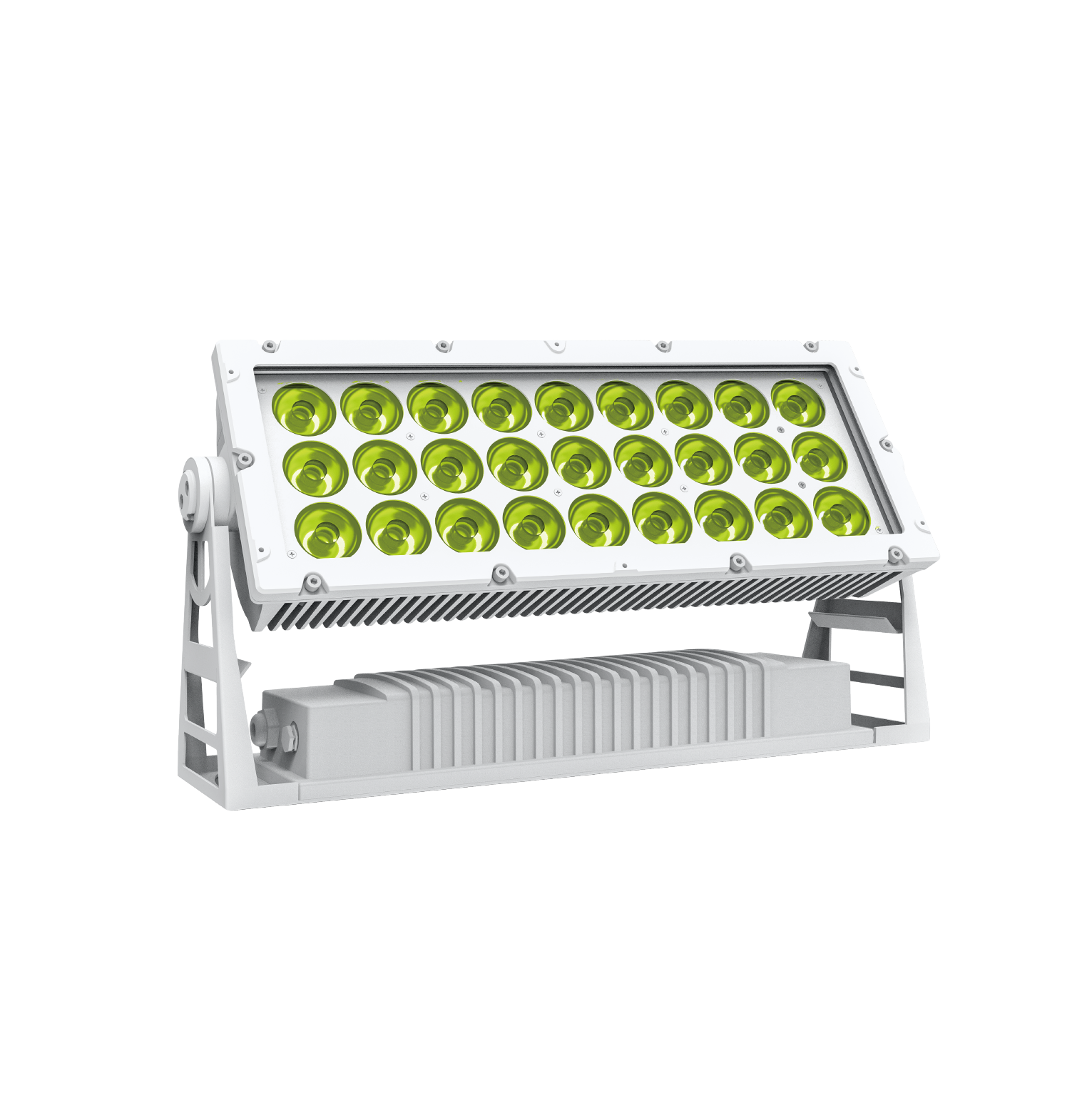

Real Photo

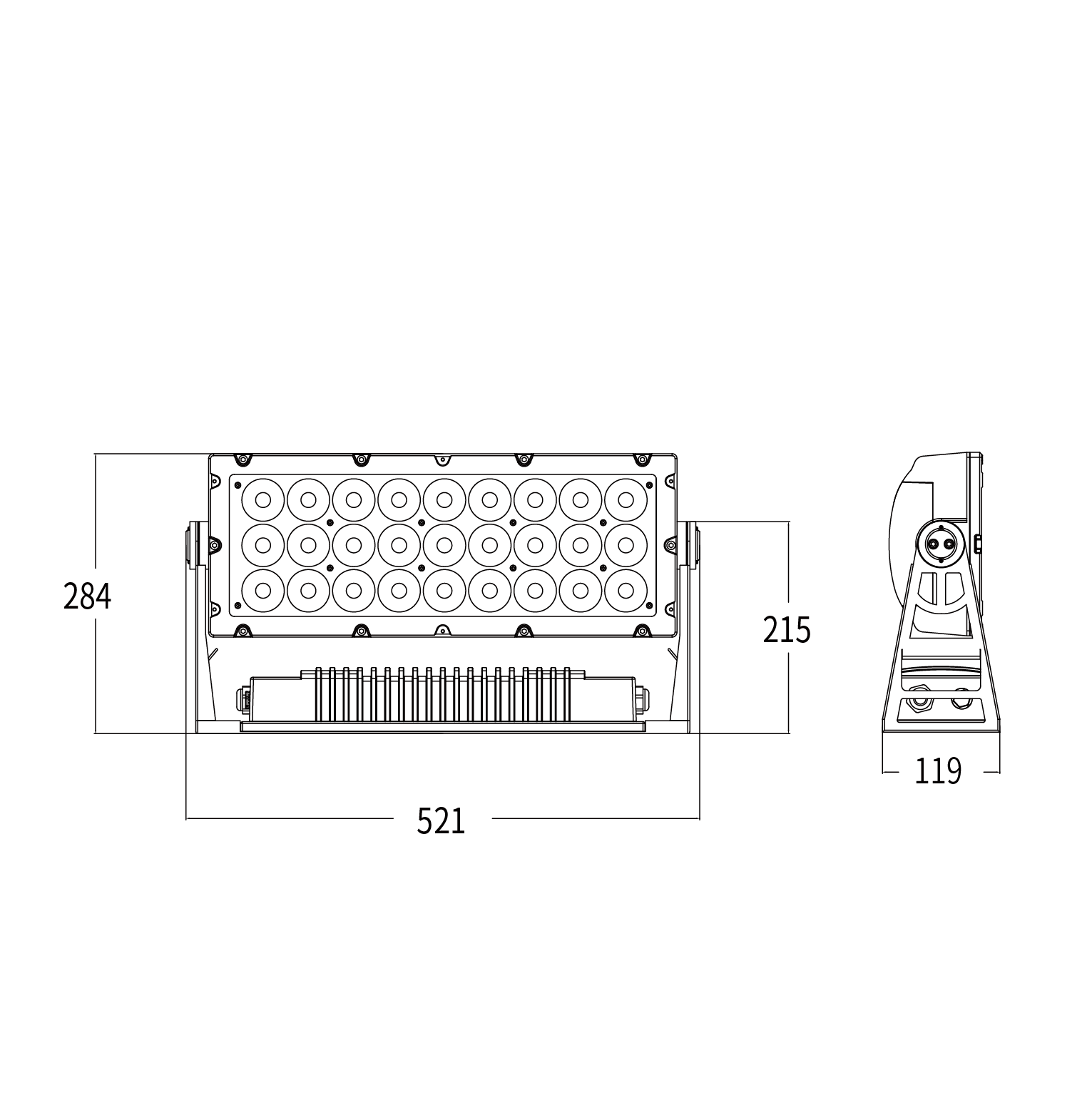

Dimension Drawing

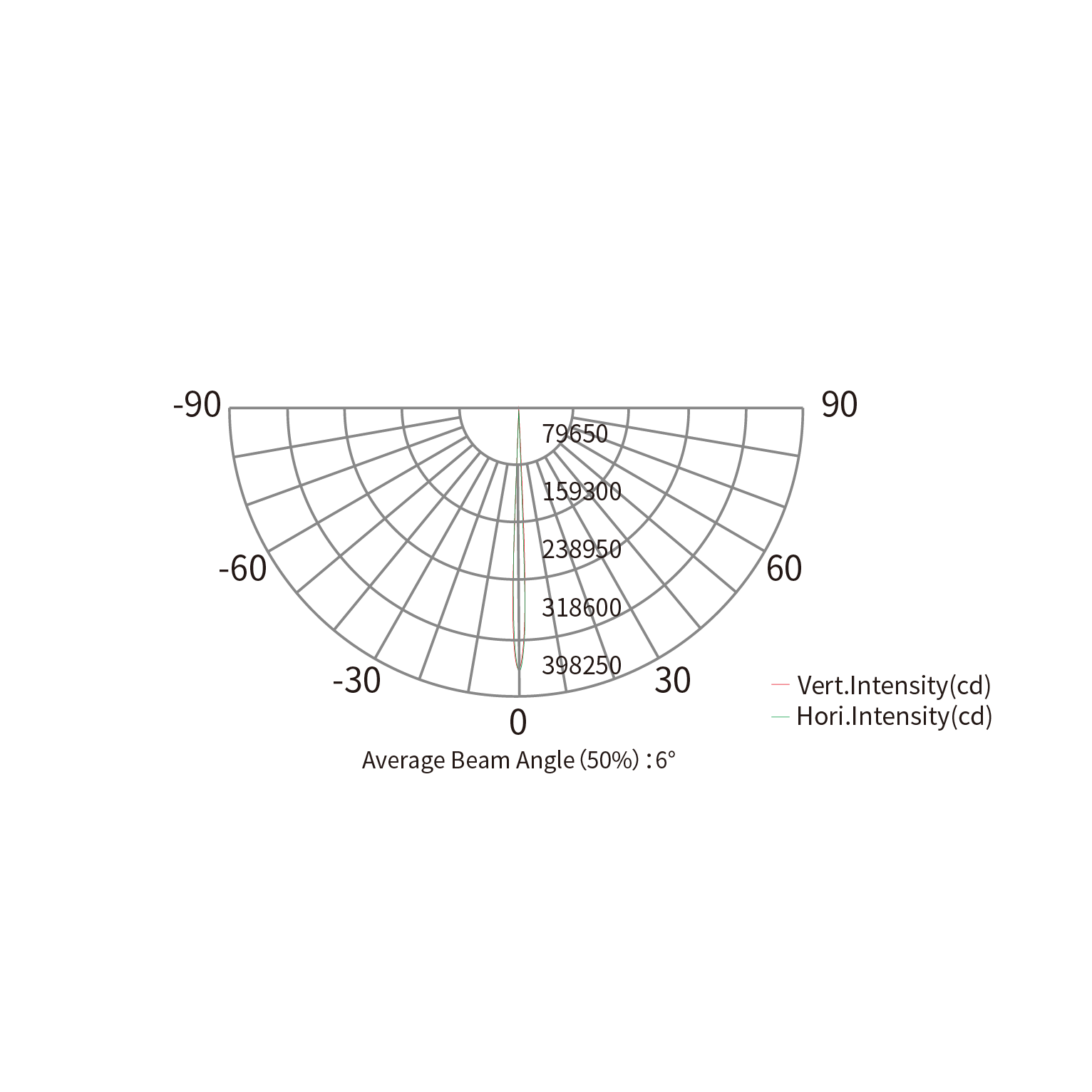

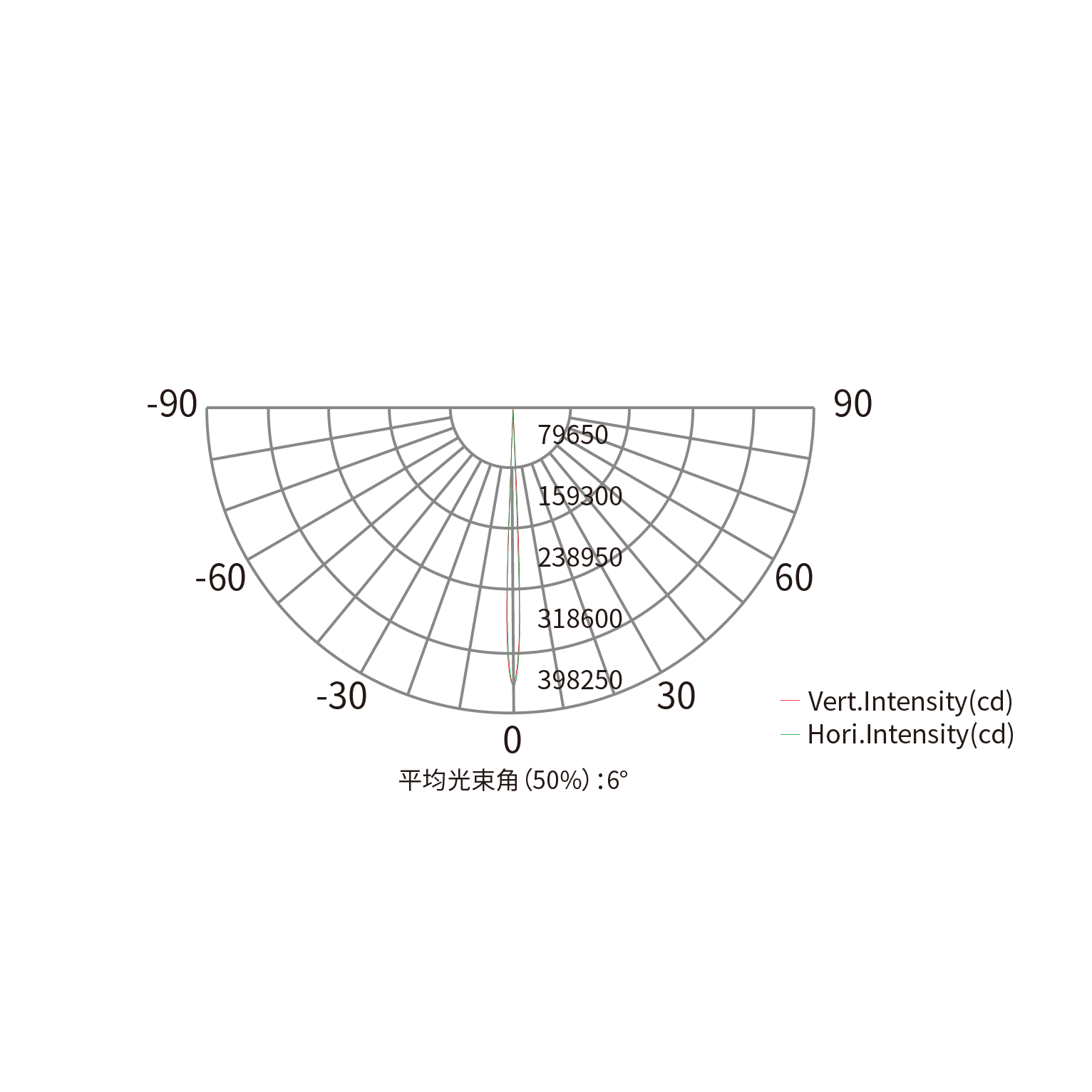

Illuminance Diagram
Multiple Color Flood Light
Q27
The Narrow Sauare Light series realizes ultra-long-distance projection, which supports a wideangle lens for option, and also supports 6" ultra-narrow angle lens for super far distance wash.suitable to all kinds of landscapes, historical sites, building facades, high towers, bridges, largestadiums, and commercial complexes.
/upload/images/product/20251008/17598942318800245.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251008/17598936828551602.png
Luminous Flux
10160lm
/upload/images/product/20251008/17598942394440864.png
Angle
6°、10°
/upload/images/product/20251008/17598942623800581.png
weight
11.4KG
/upload/images/product/20251008/17598942656683018.png
Power
300W
TECHNICAL PARAMETER
Product code

AM1362XLET

Max.Power

300W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux10160m
Peak Intensity398250cd（6°）
CTO1800K-10000K
Built-in colors

24 preset colors

Con Personality

DMX512，RDM

Operating voltageAC100~240V
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)521*119*284mm
weight11.4kg


Document Download

Product brochure
Product lamp library
CAD
User manual
