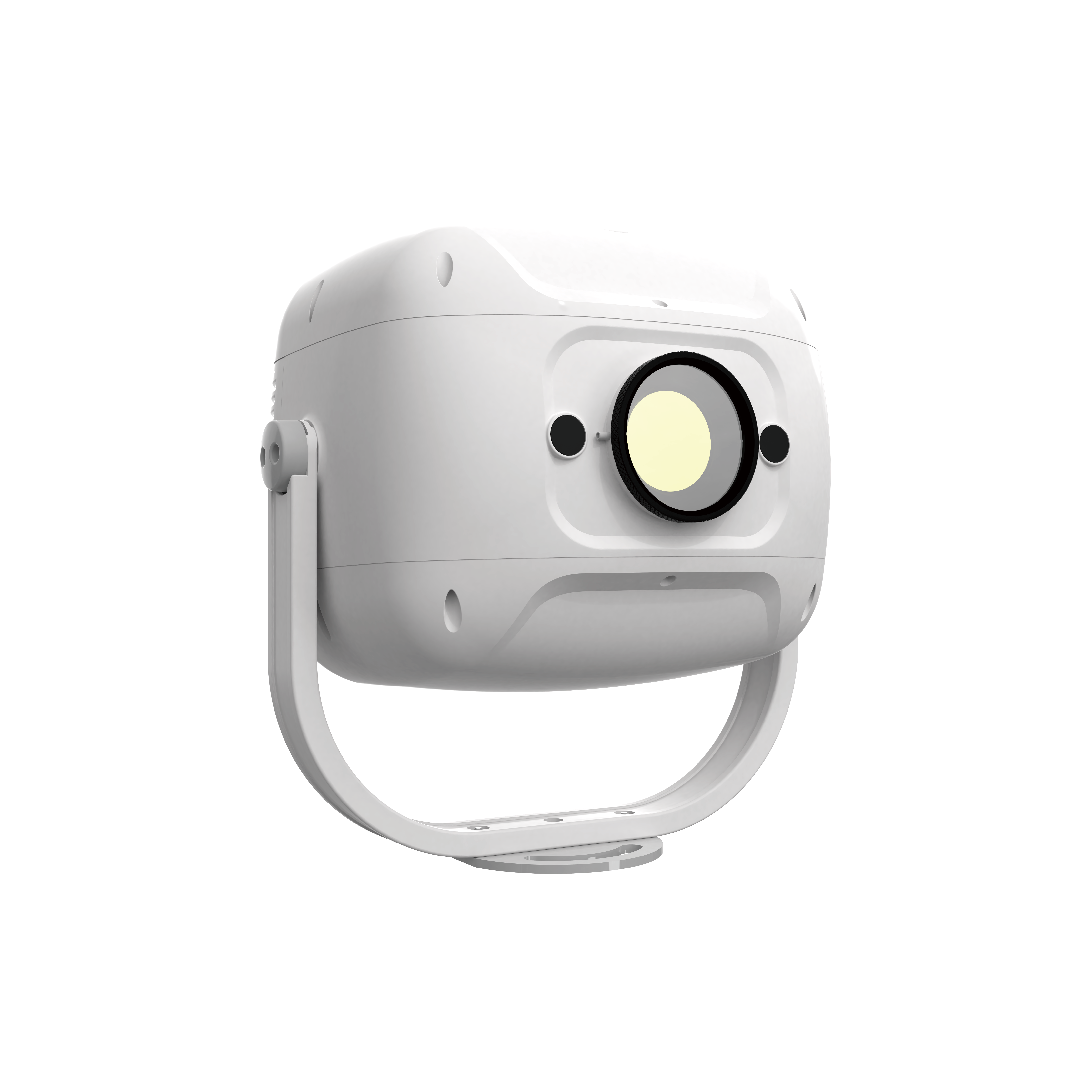

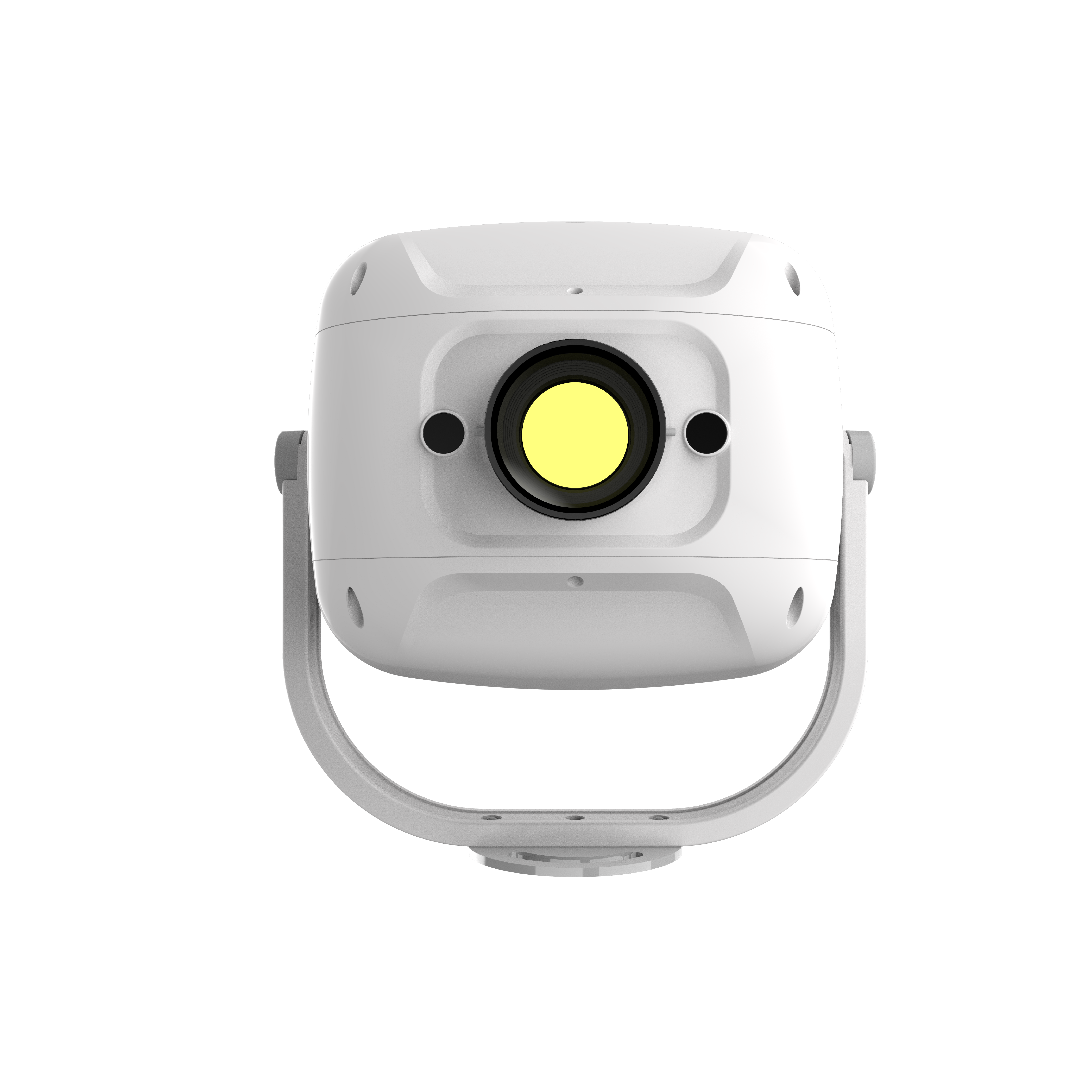

Real Photo

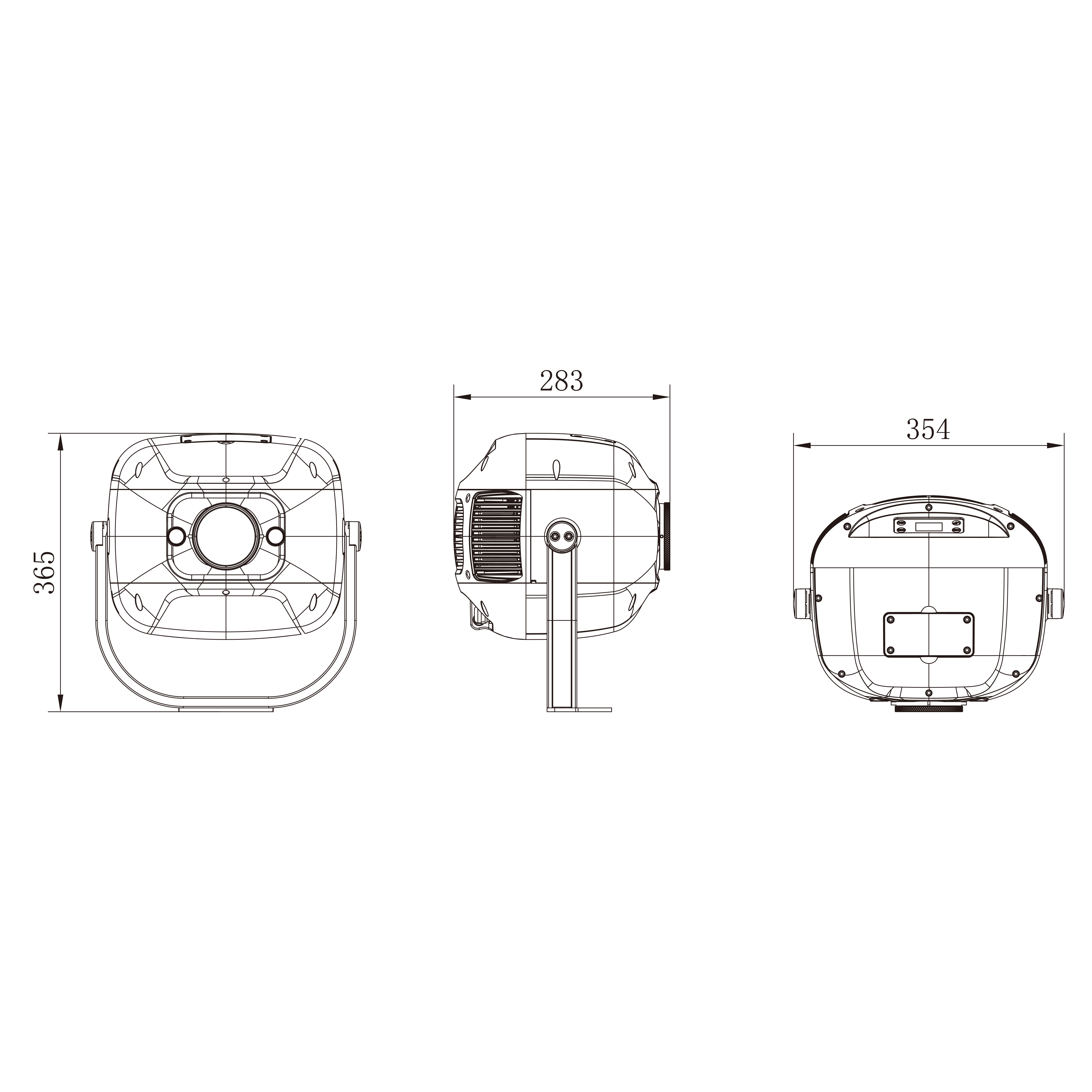

Dimension Drawing

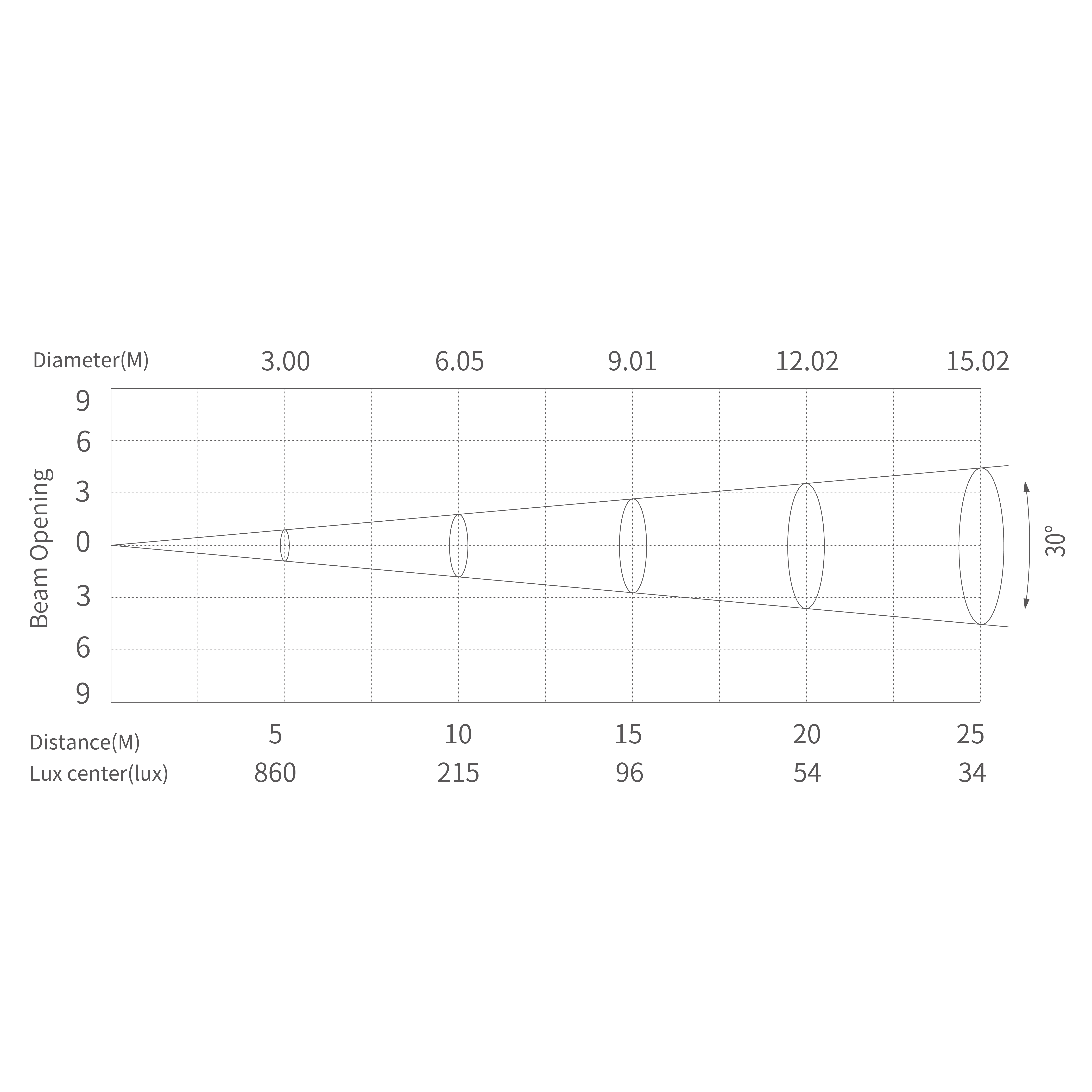

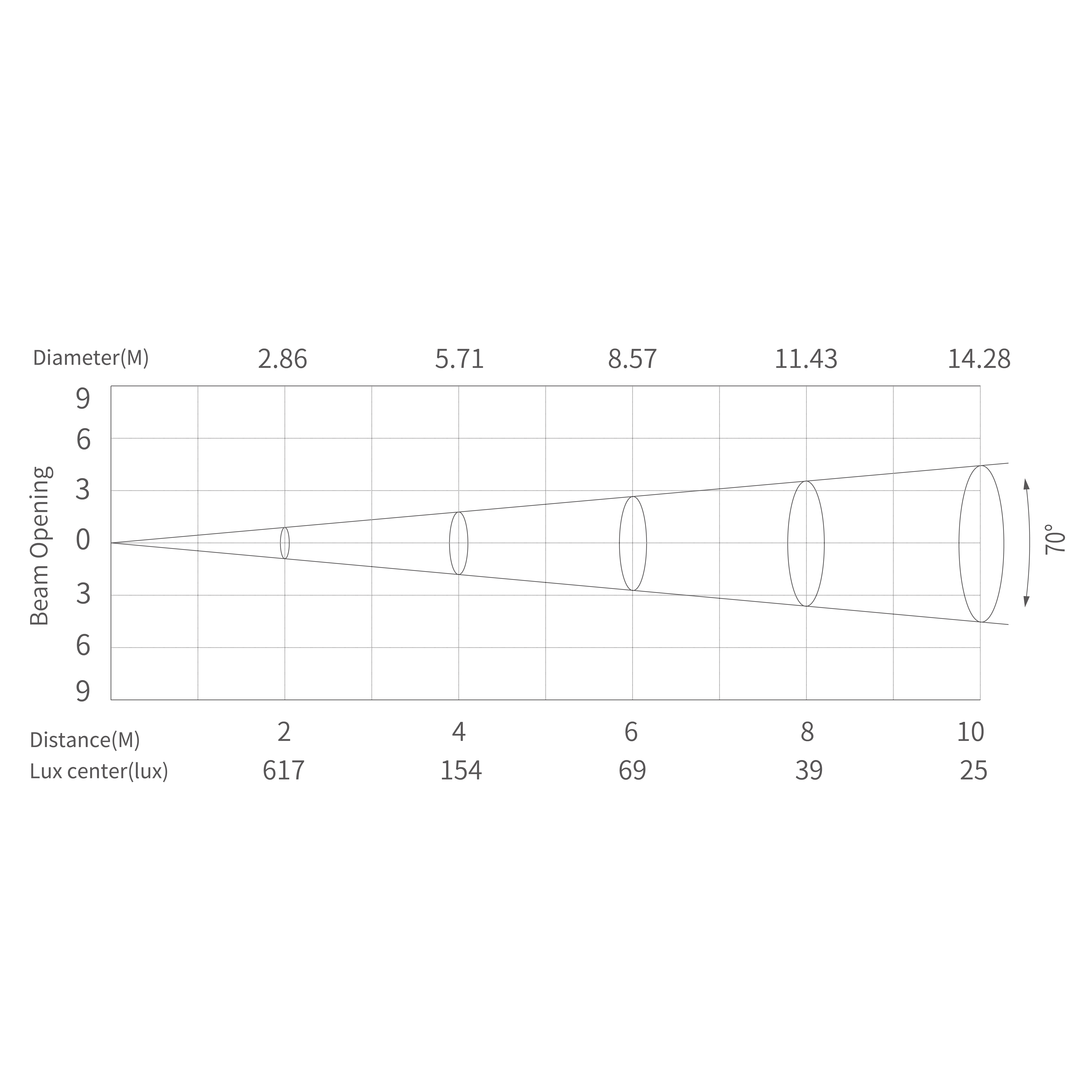

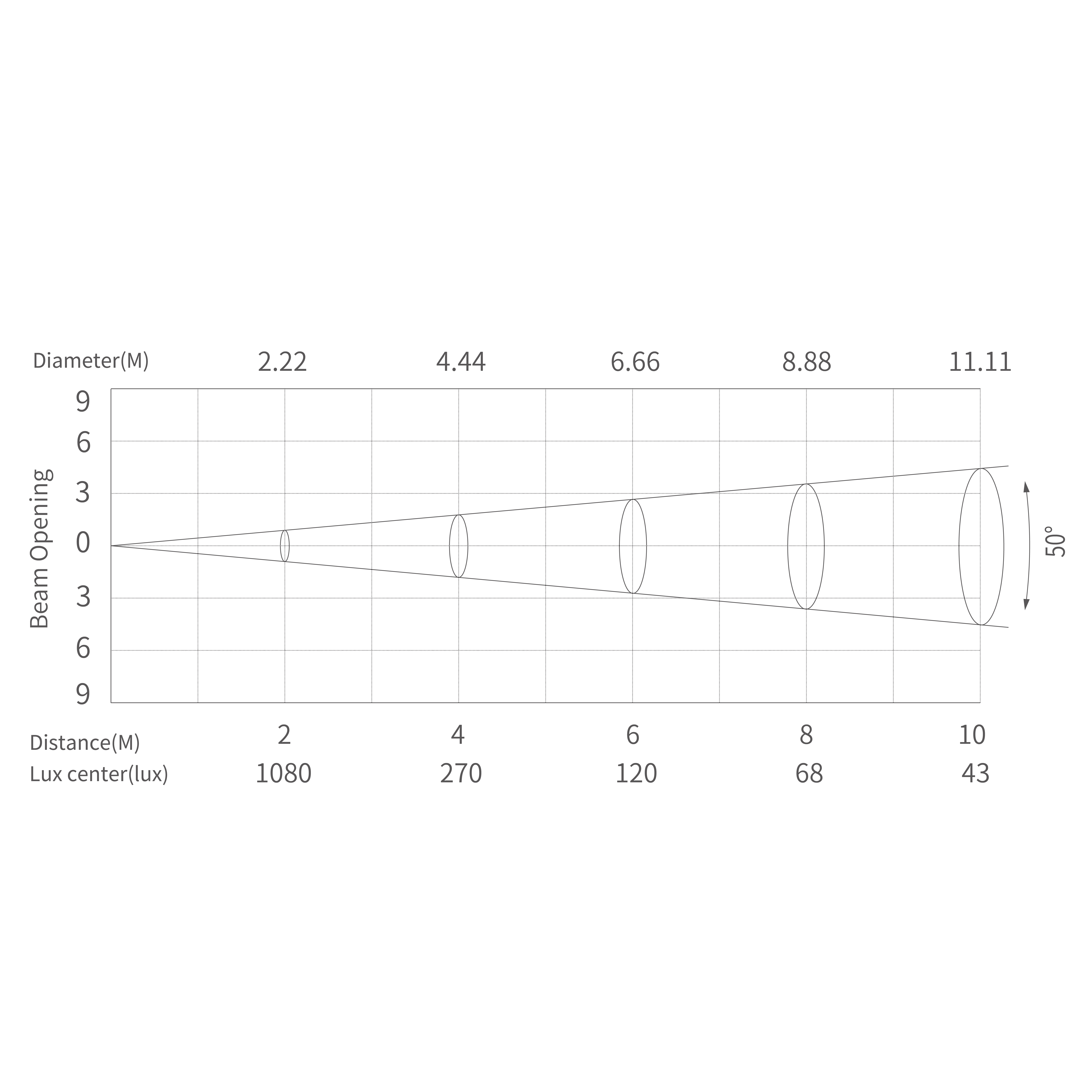

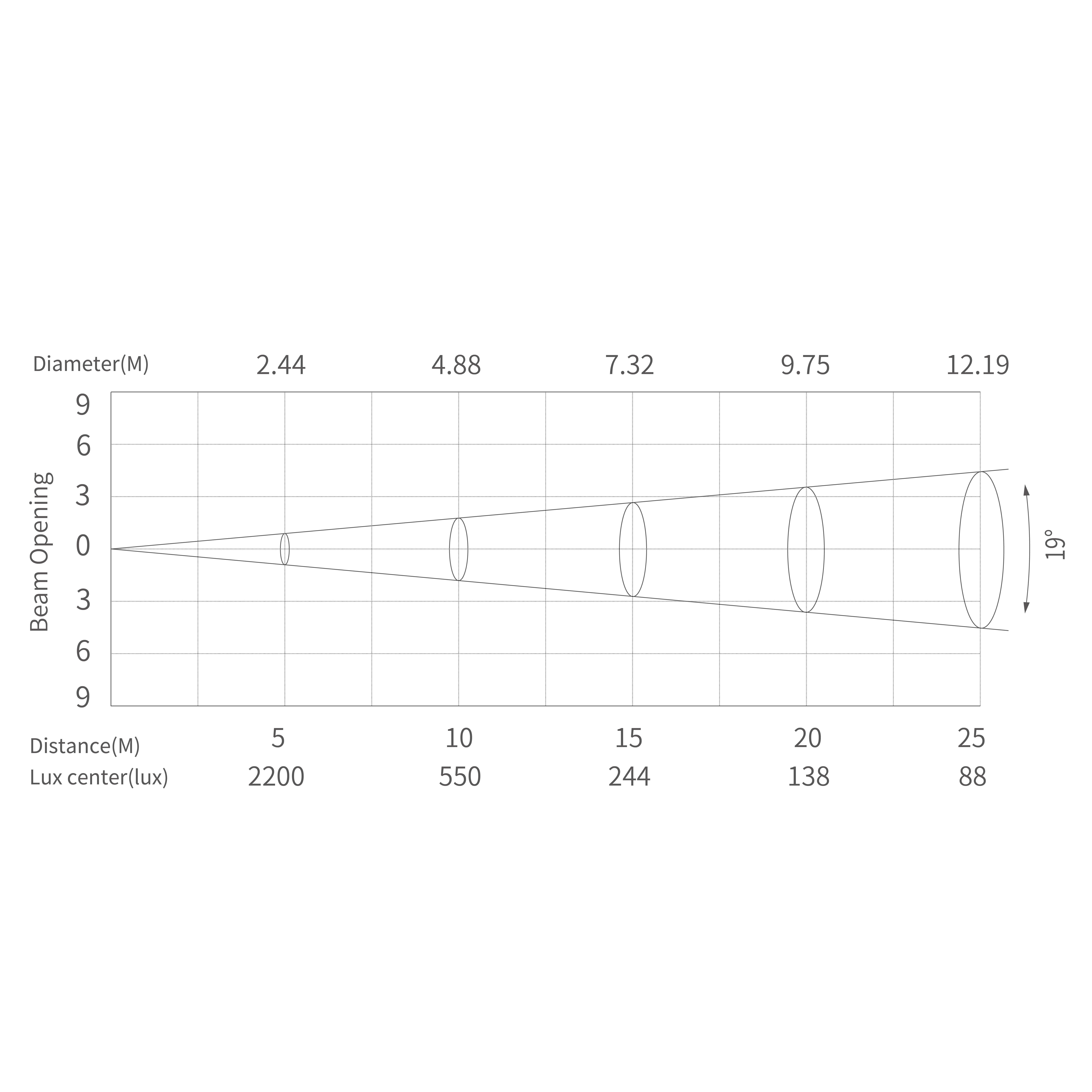

Illuminance Diagram
Eidolon Water Ripple
E ONE(Water Ripple Module)
Eidolon Gobo Projector E-ONE featuring a rounded body with smooth lines for a simple, elegant dreamy planet. Equipped with a 400W high-luminosity LED light source delivering 12,000lx at 5m, it offers interchangeable manual zoom and focus lenses (12 ° , 19 ° , 30 ° , 50 ° , 70 ° ) for both long-distance clarity and wide-area coverage. The modular design enables quick on-site swaps between gobo, ripple, and framing effects. With an IP66 rating, it handles harsh climates effortlessly. Combining a "modular" design with "dynamic expansion + smart control" innovation, the E-ONE sets a benchmark in outdoor projection, offering a versatile, artistic, and high-performance solution for theme parks, attractions, landmarks, commercial plazas, and other architectural facades.
/upload/images/product/20251010/17600659068165034.png
Light source
400W
/upload/images/product/20251010/17600659301975626.png
Angle
12°、19°、30°、50°、70° Manual Zoom and Focus
/upload/images/product/20251010/17600659969146764.png
Weight
11.6kg
/upload/images/product/20251010/17600659961372375.png
Max.Power
400W
TECHNICAL PARAMETER
MAX.POWER

400W

LIGHT SOURCE

400W

ANGLE

12°、19°、30°、50°、70° Manual Zoom and Focus

FOCUSManual focusing
DISPLAYOn board Control,0-25Hz Strobe
CON PERSONALITYSTANDARD(8CHS),BASIC(6CHS)
COLOR WHEEL

One Color Wheel (6 Color Filters + Open, Rainbow Flow Effect)

RIPPLE WHEELS

2 x Glass Ripple Wheels, Bi-directional Rotation, Speed Adjustable

DIMENSIONS(L*W*H)354*283*365mm


Document Download

Product brochure
Product lamp library
CAD
User manual
