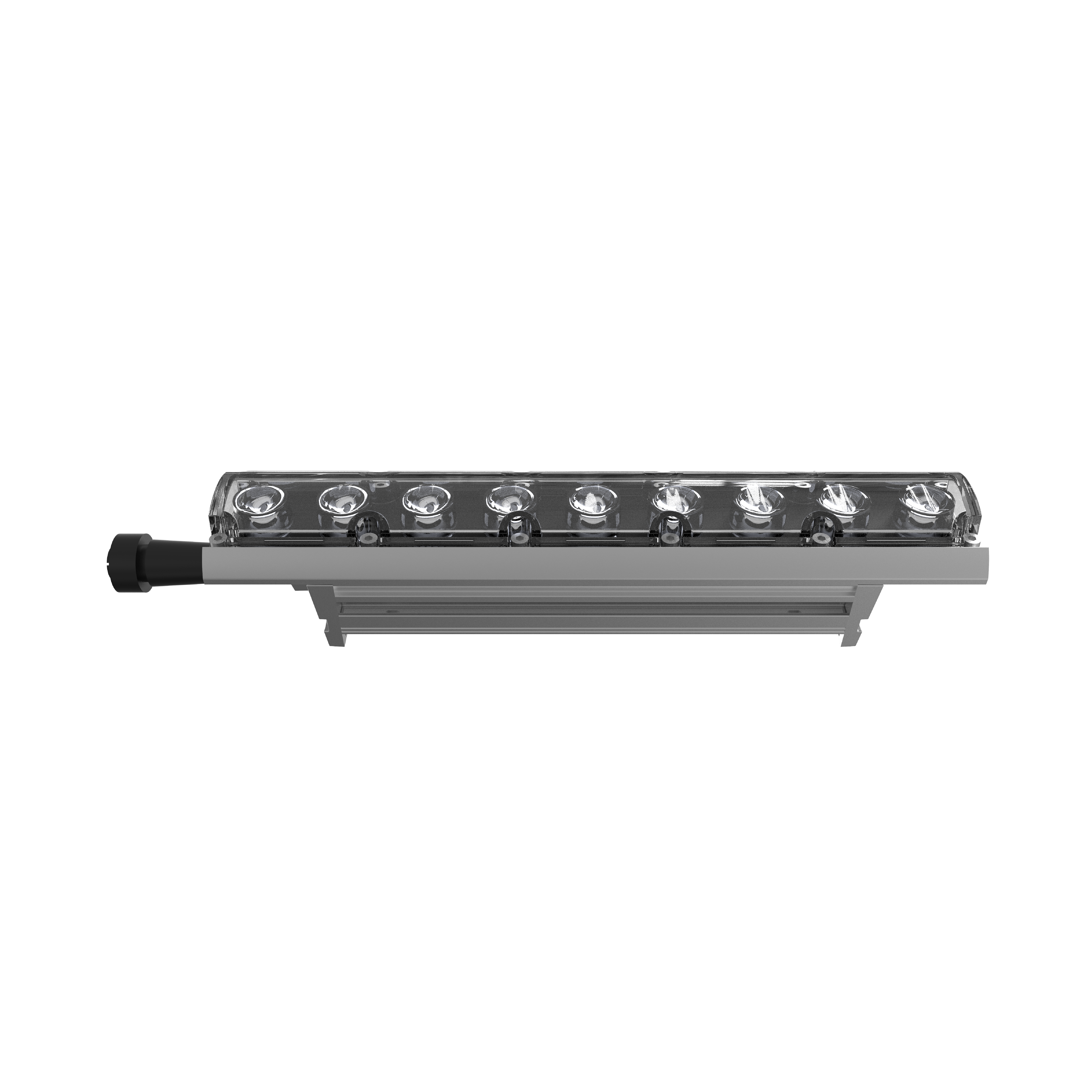

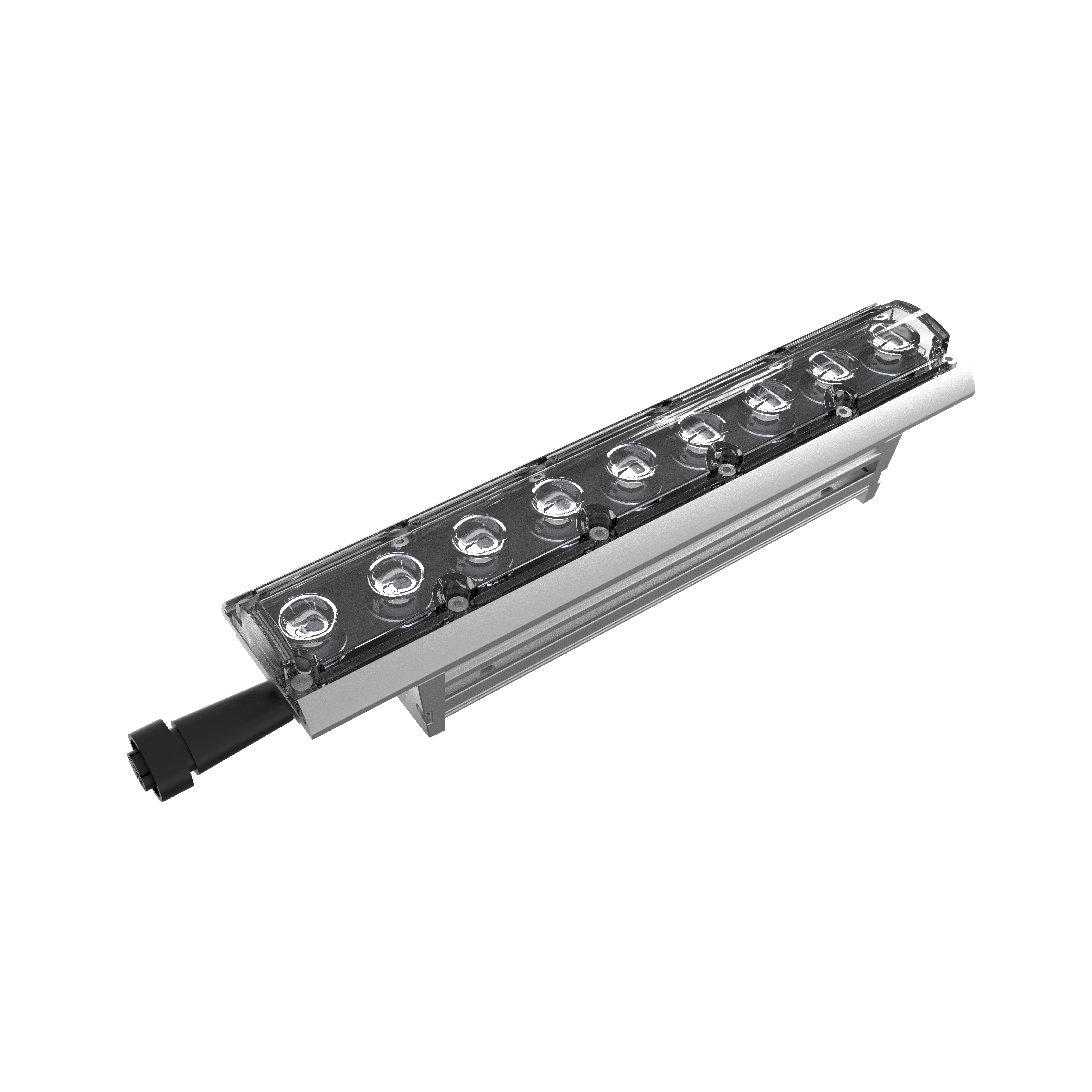

Real Photo

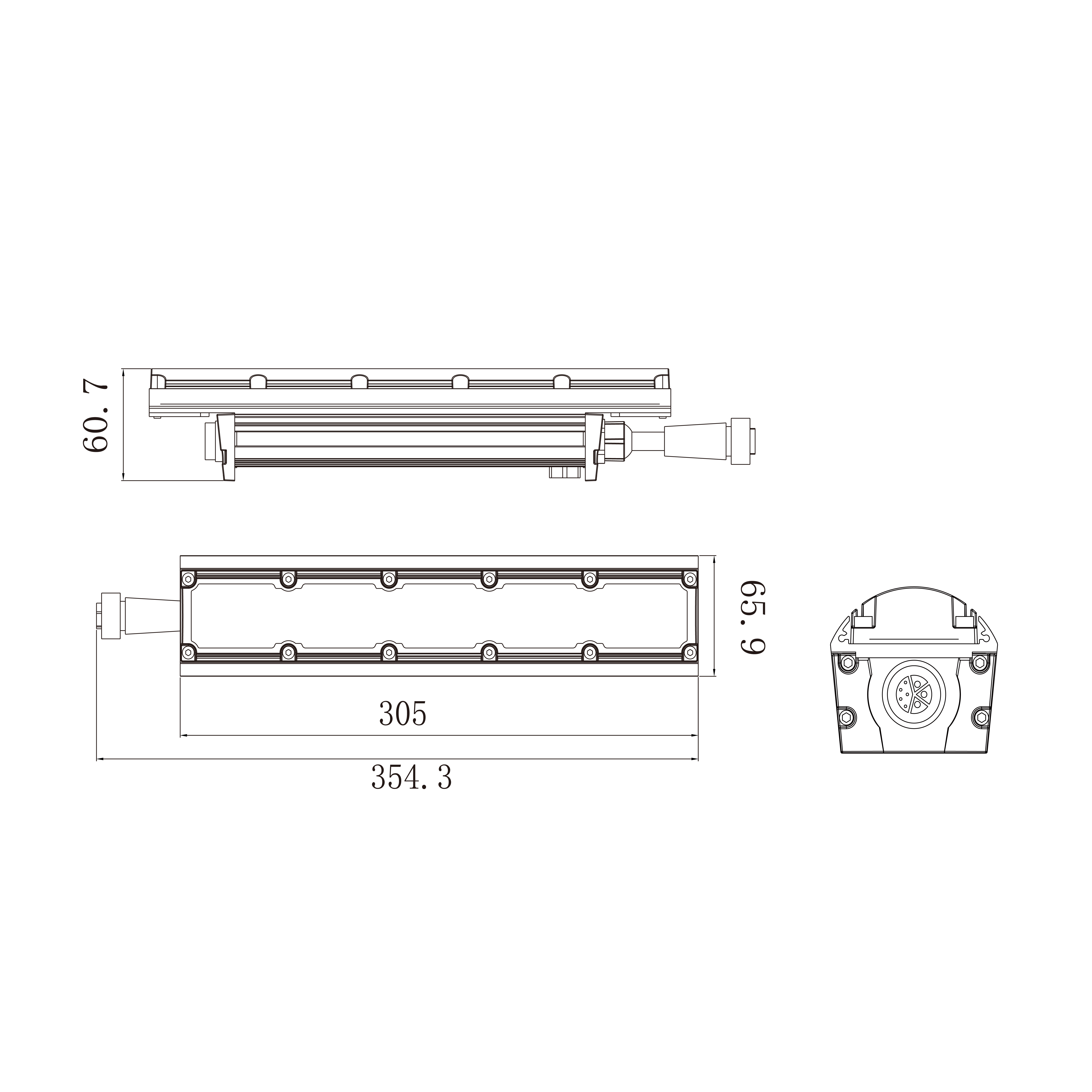

Dimension Drawing

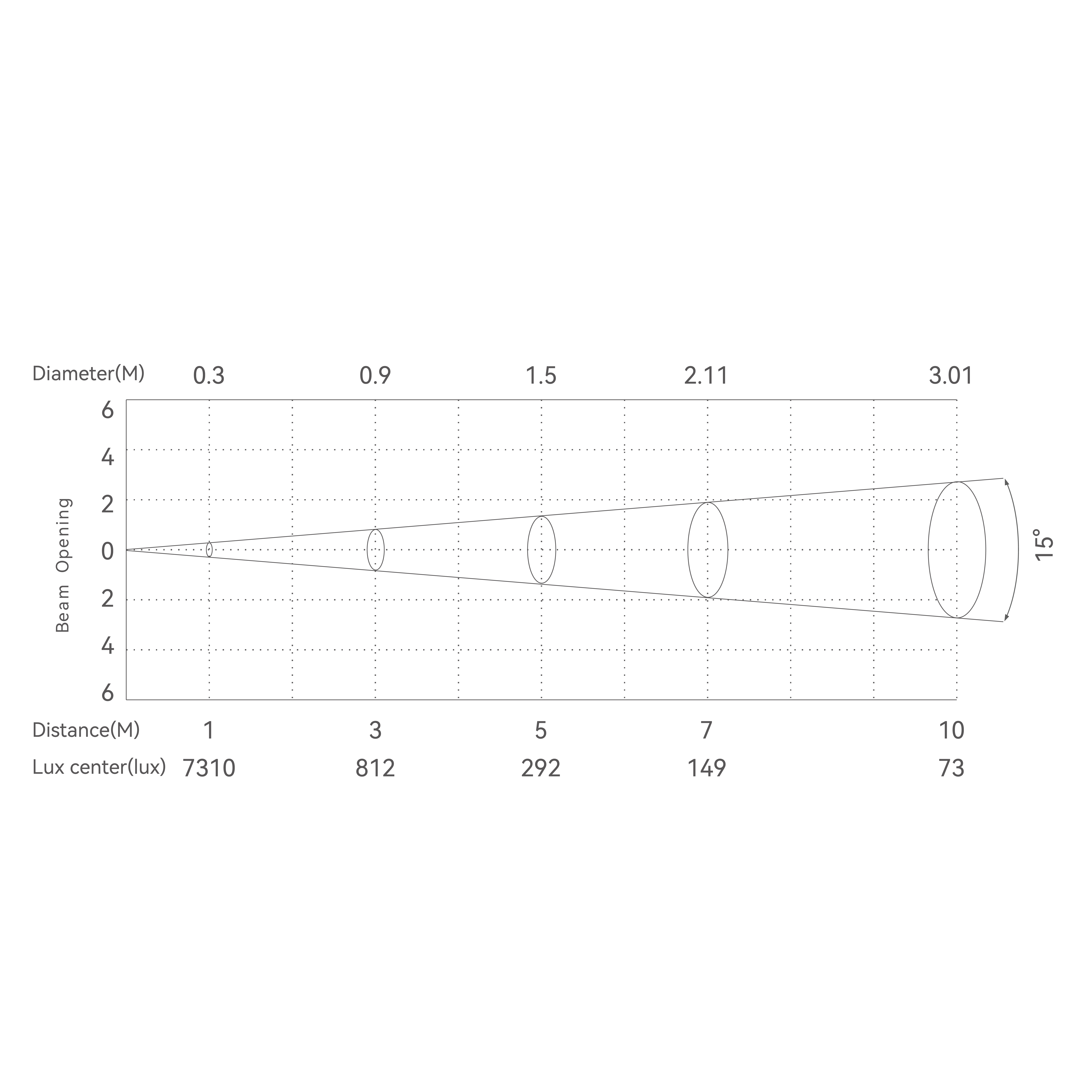

Illuminance Diagram
Linear graze
Dynamic White Linear Flood Lights are suitable for scenarios such as bridges, ancient building facades, and stadiums. They deliver delicate and uniform lighting, creating an immersive effect akin to flowing water washing over walls. Supporting linear color temperature adjustment from 1800K to 6500K and sectional dimming control, they allow flexible color temperature gradients and zoned lighting combinations. The constant power function ensures consistent brightness by maintaining rated power output across the full color temperature range. With a lightweight design for easy installation, IP67-rated waterproofing, and reliable heat dissipation, these lights not only meet the atmospheric needs of venue performances but are also ideal for long-term architectural decorative lighting, infusing spaces with dynamic light and shadow.
/upload/images/product/20251219/17661112211058072.png
Light source
/upload/images/product/20251219/17661112218606866.png
Luminous Flux
/upload/images/product/20251219/17661112214331813.png
Angle
/upload/images/product/20251219/17661112217785176.png
CRI
/upload/images/product/20251219/17661112214008254.png
Weight
/upload/images/product/20251219/17661112228926816.png
Power
Product code

WL1

Max.Power30W
Light source1800K-6500K
Luminous Flux2834lm
Peak Intensity8594cd(15°)
CRIRa:90
Con PersonalityDMX512,RDM
Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)305*66*61mm
Weight1.2kg
